Russian 75 mm /50 (2.9") Pattern 1892

Russian
75 mm/50 (2.95") Pattern 1892
---
French
7.5 cm/50 (2.95") Canet Model 1891
Updated 17 July 2007

This gun was built under a license purchased from the French designer Canet in 1891. It went into production in 1892 at the OSZ and Perm' factories in Russia. Between 1891 and 1921 OSZ made 551 guns and Perm' made an additional 248 guns. These guns were used as anti-torpedo boat weapons on almost every Russian ship built between 1892 and 1910.

In the fall of 1914 a new AA mounting was developed for this weapon with a maximum elevation of +50 degrees. 80 mounts were built of which 40 were sent to the Baltic fleet, 19 to the Black Sea fleet plus a further 12 used as coastal defense weapons. In 1916 a new mounting was developed which increased the elevation to +70 degrees, with four of these guns being completed. In the 1920s a new design increased the elevation still further to +75 degrees. This last mounting remained in production until the end of 1920s. These weapons were continually improved during their service life and in 1941 there were still 69 guns in active service in the Soviet Navy.

Some of these weapons were captured by the Japanese during the Russo-Japanese war. The Japanese then produced their own projectiles for them.

Constructed of barrel, fastened by casing and an extra ring. The breech was a simple piston-type.

Actual bore diameter was 7.5 cm (2.95"), not 7.62 cm (3.0").

The data that follows is for Russian guns except where specified.

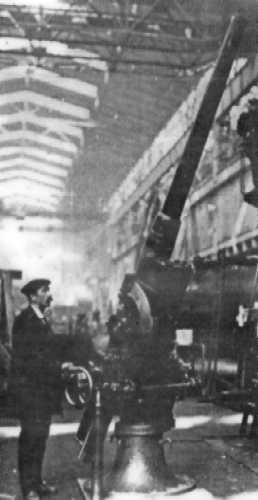

75 mm/50 gun on Russian AA mounting

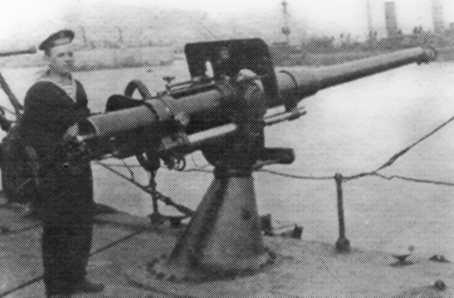

75 mm/50 (2.9") in anti-torpedo boat mounting on the Russian cruiser Gromoboy

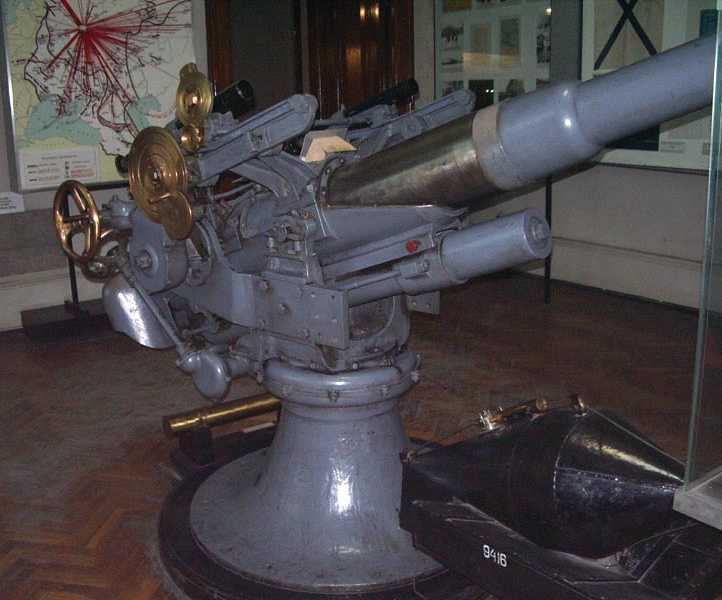

75 mm/50 (2.9") gun now at Central Naval Museum, St. Petersburg, Russia
Photograph copyrighted by Vladimir Yakubov

Gun Characteristics .

Designation	Russian: 75 mm/50 (2.9") Pattern 1892 French: 7.5 cm/50 (2.9") Canet Model 1891
Ship Class Used On	Used on almost every ship in the Russian Navy between 1892 and 1914
Date Of Design	N/A
Date In Service	1892
Gun Weight	1,938 lbs. - 2,006 lbs. (879 kg - 910 kg)
Gun Length oa	147.64 in (3.75 m)
Bore Length	142.36 in (3.616 m)
Rifling Length	115.87 in (2.943 m)
Grooves	30
Lands	N/A
Twist	N/A
Chamber Volume	208.7 in3 (3420 cm3)
Rate Of Fire	12-15 rounds per minute

Ammunition .

Type	Fixed
Weight of Complete Round	AP "old model" - N/A HE mod 1907 - 21.16 lbs. (9.6 kg) HE AA Grenade - N/A Shrapnel - 21.16 lbs. (9.6 kg) Shrapnel (Japanese) - 23.52 lbs. (10.67 kg) Shrapnel (Rozenberg) - 23.04 lbs. (10.45 kg) Diving - 17.42 lbs. (7.9 kg)
Projectile Types and Weights	AP "old model" - 10.8 lbs. (4.9 kg) HE mod 1907 - 10.83 lbs. (4.91 kg) HE AA Grenade - 12.63 lbs. (5.73 kg) Shrapnel - 10.83 lbs. (4.91 kg) Shrapnel (Japanese) - 13.16 lbs. (5.97 kg) Shrapnel (Rozenberg) - 12.68 lbs. (5.75 kg) Diving - 9.92 lbs. (4.5 kg)
Bursting Charge	AP "old model" - none HE mod 1907 - 1.15 lbs. (0.52 kg) HE AA Grenade Shrapnel - 0.15 lbs. (0.068 kg) Shrapnel (Japanese) - 0.19 lbs. (0.085 kg) Shrapnel (Rozenberg) - 0.18 lbs. (0.082 kg) Diving - 1.68 lbs. (0.76 kg)
Projectile Length	AP "old model" - 2.7 calibers HE mod 1907 - 3.36 calibers HE AA Grenade Shrapnel - 4.0 calibers Shrapnel (Japanese) - 4.4 calibers Shrapnel (Rozenberg) - 4.5 calibers Diving - 3.44 calibers
Propellant Container Type and Weight	Cartridge - 6.68 - 7.06 lbs. (3.03 - 3.2 kg)
Propellant Charge	3.31 lbs. (1.5 kg) for all 0.44 lbs. (0.2 kg) for diving round
Muzzle Velocity	AP "old model" - 2,700 fps (823 mps) HE mod 1907 - 2,700 fps (823 mps) HE AA Grenade - 2,450 fps (747 mps) Shrapnel - 2,420 fps (738 mps) Shrapnel (Japanese) - 2,700 fps (823 mps) Shrapnel (Rozenberg) - 2,400 fps (731.5 mps) Diving - 750 fps (229 mps)
Working Pressure	N/A
Approximate Barrel Life	N/A
Ammunition stowage per gun	N/A
Note: Only AP "old model" rounds were produced in 1904-05.

Range .

Elevation	With 10.8 lbs. (4.9 kg) AP "old model"
Range @ 13 degrees	7,000 yards (6,405 m)
Range @ 21 degrees	8,600 yards (7,869 m)
Elevation	With 10.83 lbs. (4.91 kg) HE mod 1907
Range @ 20 degrees	8,600 yards (7,869 m)
Elevation	With 12.63 lbs. (5.73 kg) HE AA Grenade
Range @ 20 degrees	8,400 yards (7,686 m)
Range @ 25 degrees	9,200 yards (8,418 m)
Range @ 35 degrees	10,000 yards (9,150 m)
AA Ceiling @ 60 degrees	16,200 feet (4,908 m)
Elevation	With 23.04 lbs. (10.45 kg) Shrapnel (Rozenberg)
Range @ 19.4 degrees	8,200 yards (7,503 m)
Range @ 32.2 degrees	9,400 yards (8,601 m)
Range @ 40 degrees	9,800 yards (8,967 m)

Armor Penetration with 10.8 lbs. (4.9 kg) AP "old model" Shell .

Elevation	Range	Side Armor	Striking Velocity	Angle of Fall
0 degrees	0 yards (0 m)	4.7 in (120 mm)	2,600 fps (792.5 mps)	0
Note: Data from "Imperial Russian Navy Cruiser Varyag" for Krupp steel.

Mount / Turret Data .

Designation	Single Mounts Canet OSZ mod 1911 Meller Pattern 1906 Pattern 1908 Casemate Mount mod 1906 AA mounts Pattern 1914 OSZ mod 1916 AA mount modified from Meller's mount Pattern 1926 Pattern 1928
Weight	Canet - about 3.94 tons (4 mt) OSZ mod 1911 - 2.515 tons (2.555 mt) Meller - 1.693 tons (1.72 mt) Pattern 1906 - 4.351 tons (4.42 mt) Pattern 1908 - about 3.94 tons (4 mt) Casemate Mount mod 1906 - 4.354 tons (4.423 mt) OSZ mod 1916 AA - about 1.969 tons (2 mt)
Elevation	Canet: -15 / +20 degrees OSZ mod 1911: -10 / +20 degrees Meller: -15 / +20 degrees Pattern 1906: -15 / +20 degrees Pattern 1908: -15 / +25 degrees Casemate Mount mod 1906: -15 / +25 degrees AA Pattern 1914: -? / +50 degrees OSZ mod 1916 AA: -? / +70 degrees AA mod 1928: -? / +75 degrees
Rate of Elevation	Manual operation, only
Train	360 degrees all
Rate of Train	Manual operation, only
Gun Recoil	Canet - 7.87 in (20 cm) OSZ mod 1911 - 13 in (33 cm) Meller - 15.74 in (40 cm) Pattern 1906 -7.87 in (20 cm) Pattern 1908 - 7.87 in (20 cm) Casemate Mount mod 1906 - 7.87 in (20 cm) OSZ mod 1916 AA - 15.74 in (40 cm)

Data from
"Entsiklopedia Otechestvennoi Artillerii" (Encyclopedia of Fatherland [Russian] Artillery) by A.V. Shirokorad
"Imperial Russian Navy Cruiser Varyag" article by Adam Smigielski in "Warship" Volume III
Special help from Vladimir Yakubov
