British Royal Navy Ammuntion Markings

By Tony DiGiulian
Updated:  01 August 2008

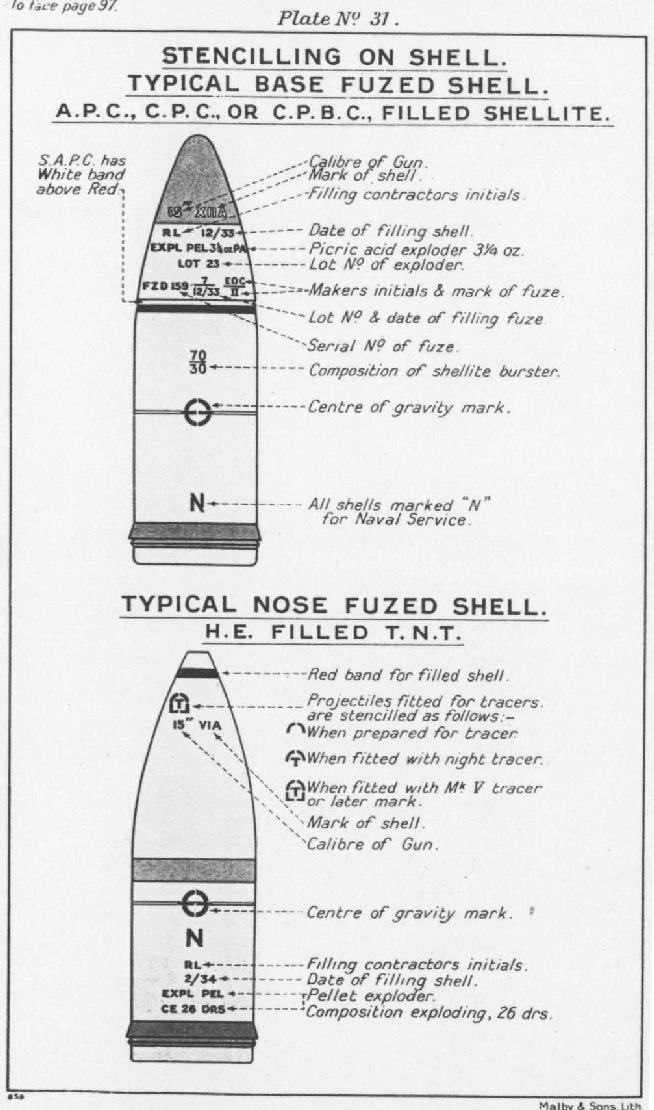

British Royal Navy Projectile Markings of the World War II era


APC and SAP projectiles with "K" devices had their Ballistic Caps painted the color of the marker dye
Image courtesy of Steve Johnson of Cyberheritage

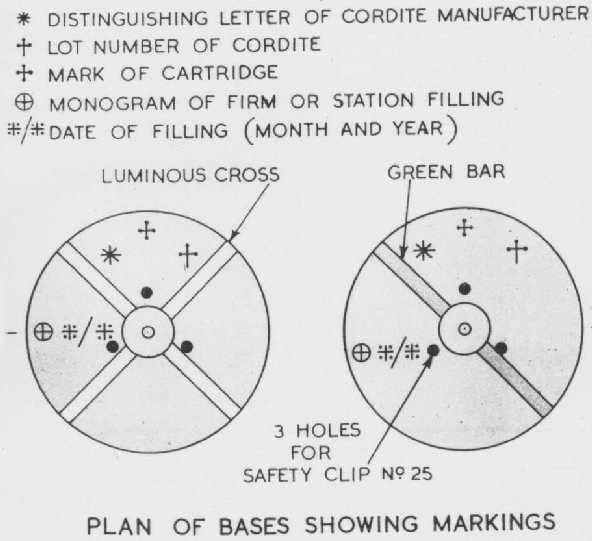

British Royal Navy Cartridge Case Markings of the pre-World War II and World War II era


Image courtesy of Steve Johnson of Cyberheritage

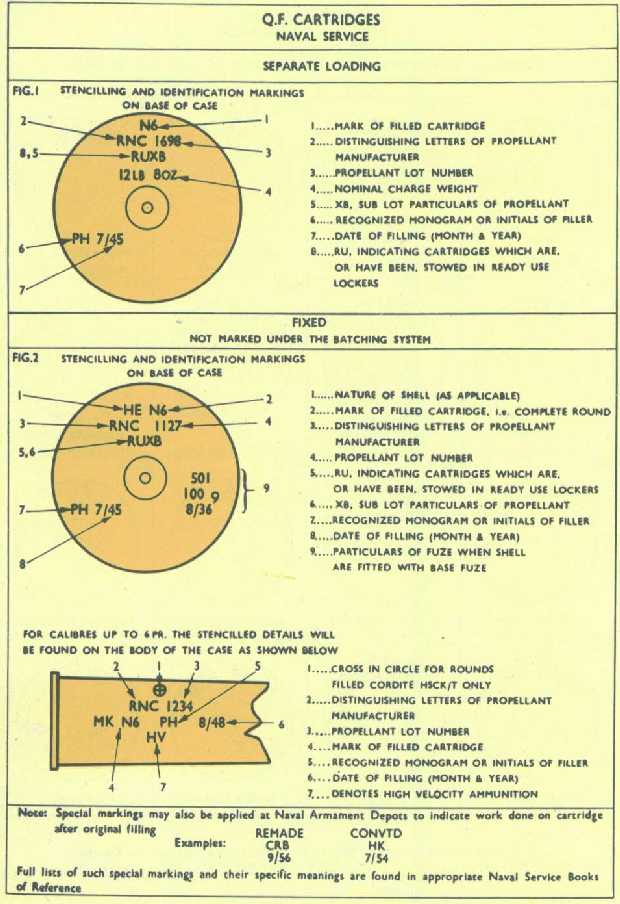

British Royal Navy Cartridge Case Markings of the post-World War II era


Image courtesy of Steve Johnson of Cyberheritage

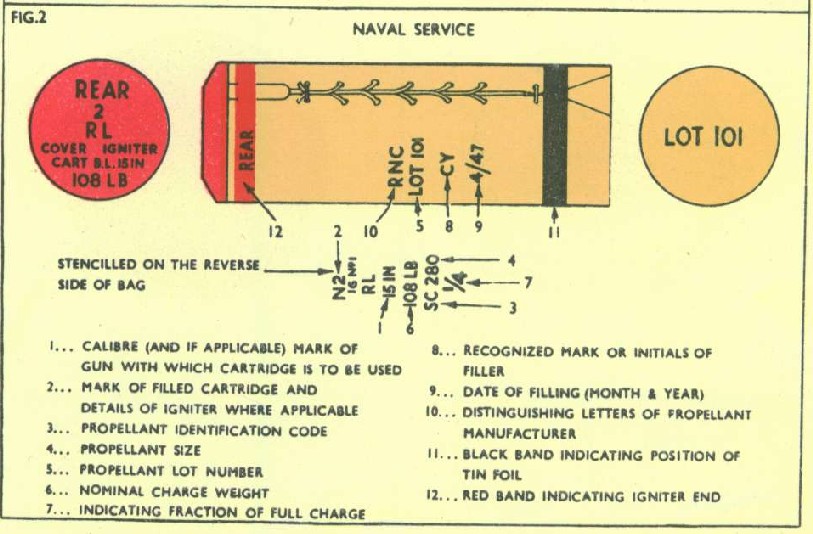

British Royal Navy Bag Charge Markings of the post-World War II era


Image courtesy of Steve Johnson of Cyberheritage
