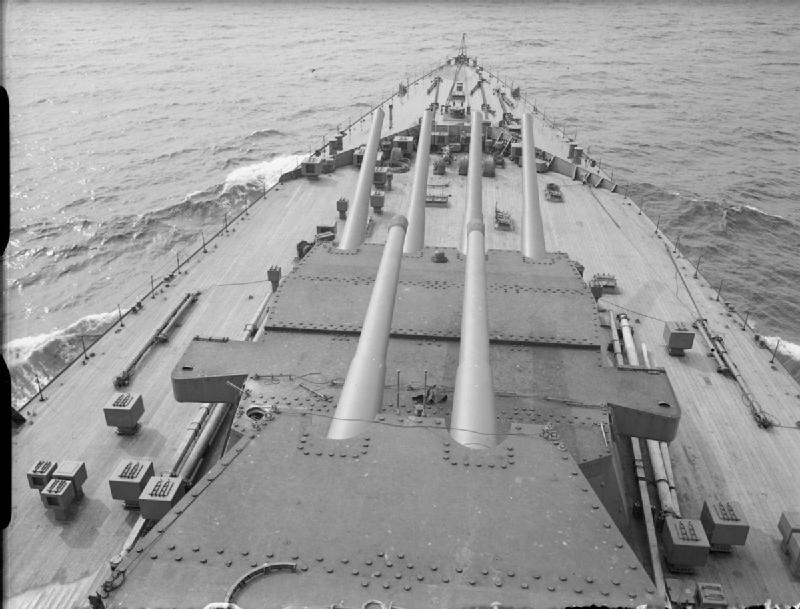

Bow turrets on HMS Prince of Wales
IWM photograph A 3905

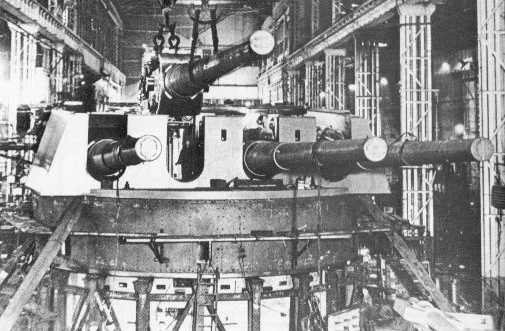

Quad Mark III turret under construction
Note that the gun house needed to be dismantled
in order to change out the guns
National Maritime Museum photograph

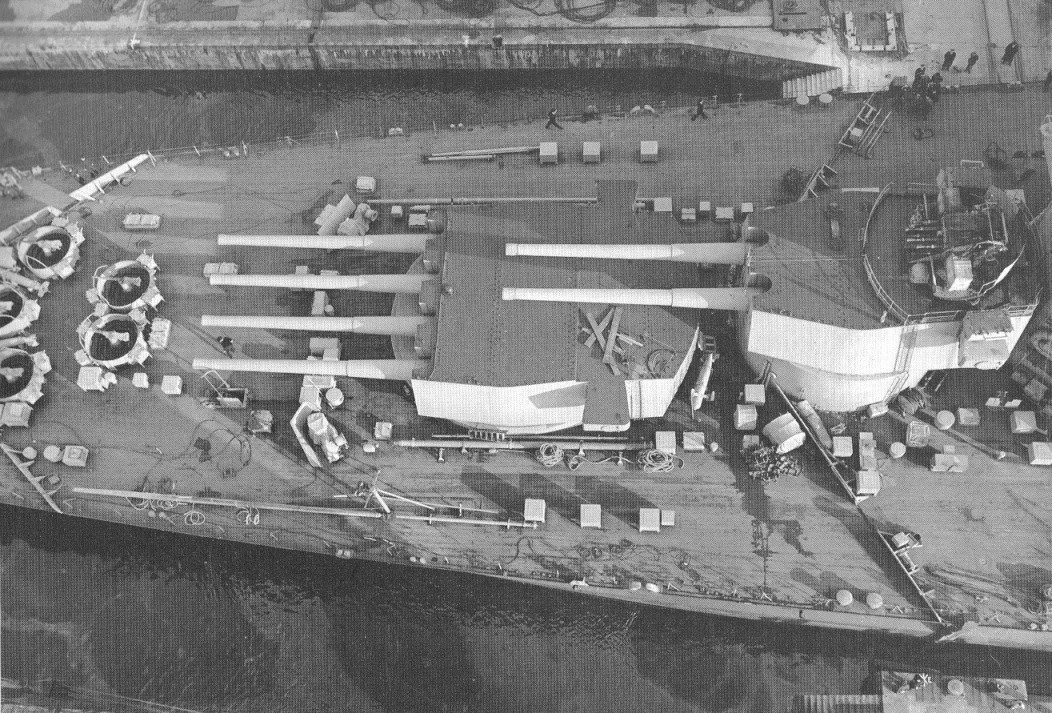

Forward turrets of Duke of York during
a refit at Rosyth in 1945
Note the 2pdr
on "B" turret and the 20 mm Oerlikon guns
at left
IWM Photograph A20166

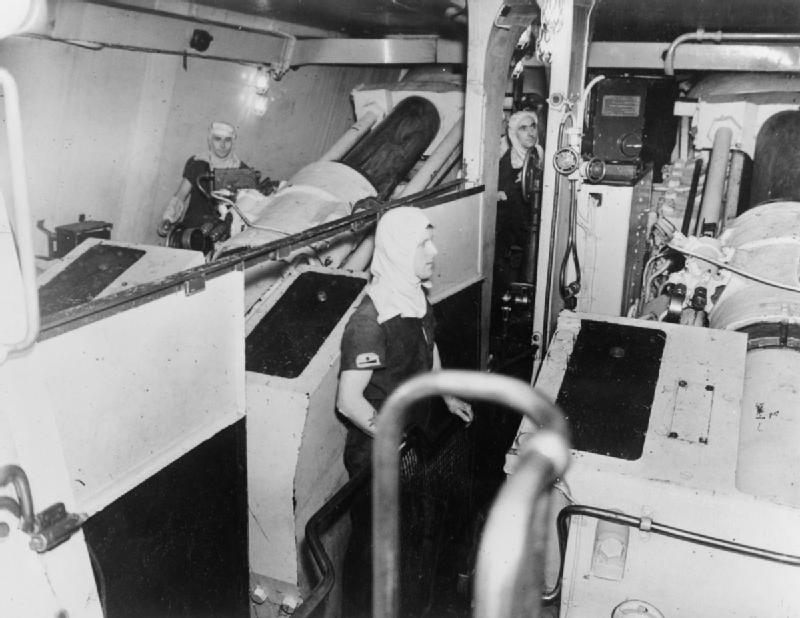

Interior of one of the turrets on HMS Duke
of York
Note that the guns are not separated by
flash walls
IWM photograph A 21180
