35 cm/45 (13.78") SK L/45
Updated 20 November 2012
Planned for the never-completed Mackensen Class battlecruisers.  These guns were later employed at Flanders as field artillery.

The naval mountings for these guns were to use electric pumps to drive hydraulic elevation gear while the training was all electric.  These guns also would have had hydraulically worked shell hoists, rammers and breeches.

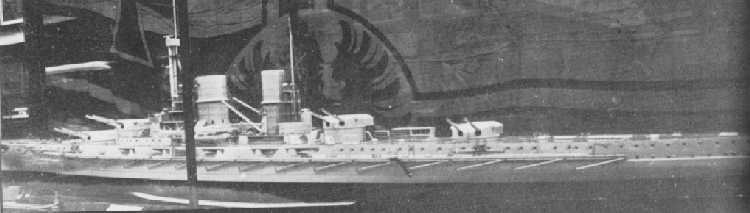

Model of Mackensen at the Museum for Marine Science (Berlin)
This model was destroyed during World War II
Photograph copyrighted by Siegfried Breyer
.
Gun Characteristics
.
Designation 35 cm/45 (13.78") SK L/45
Ship Class Used On Mackensen Class
Date Of Design 1914
Date In Service 1917 (as Field Artillery)
Gun Weight
(see Note)		 about 162,000 lbs. (73,500 kg)
Gun Length oa 620.1 in (15.750 m)
Bore Length 584.25 in (14.840 m)
Rifling Length 487.0 in (12.369 m)
Grooves (88) 0.138 in D x 0.327 in W at start narrowing to 0.268 in W at muzzle (3.5 mm D x 8.3 mm W to 6.8 mm W)
Lands 0.165 in at start widening to 0.244 in at muzzle (4.2 mm to 5.7 mm)
Twist Uniform RH 1 in 30
Chamber Volume 15,872 in3 (260 dm3)
Rate Of Fire 2.5 rounds per minute
Note:  The often-seen figure of 216,273 lbs. (98,100 kg) for this weapon actually includes the weight of the Weige (gun cradle).
.
Ammunition
.
Type Cartridge - Bag
Projectile Types and Weights APC L/3,1 - 1,323 lbs. (600 kg)
HE L/4,1 - 1,323 lbs. (600 kg)
Bursting Charge APC - about 44 lbs. (20 kg)
HE - about 88 lbs. (40 kg)
Projectile Length APC - about 43 in (108 cm)
HE - about 56 in (144 cm)
Propellant Charge Main Charge:  N/A
Fore Charge:  N/A
Brass case for main charge:  N/A
Muzzle Velocity 2,674 fps (815 mps)
Working Pressure 20.0 tons/in2 (3,150 kg/cm2)
Approximate Barrel Life
(see Note 2)		 250 rounds
Ammunition stowage per gun 90 rounds
Notes:

1) These guns, like most large caliber German guns, used a "fore charge" which was propellant in a silk bag, and a "main charge" which was propellant in a brass case.  The brass case helped to seal the breech of the gun.

2) When used as Field Artillery at Flanders, one gun fired 578 rounds without exceeding its service life.
.
Range
.
Elevation For 1,323 lbs. (600 kg) AP shell
Range @ 16 degrees about 21,870 yards (20,000 m)
Range @ 20 degrees about 25,480 yards (23,300 m)
.
Mount / Turret Data
.
Designation Two-gun Turrets
   Mackensen (4):  N/A (Probably Drh LC/1914)
Weight  N/A
Elevation
(see Note)		 -8 / +16.0 degrees
Elevation Rate N/A
Train About +150 / -150 degrees
Train Rate N/A
Gun recoil N/A
Note:  Design discussions after Jutland (Skagerrak) included altering the elevation to -5 / +20 degrees, similar changes made to other German ships.
.
Data from
"Battleships of the World:  1905-1970" by Siegfried Breyer
"Naval Weapons of World War One" by Norman Friedman
"Große Kreuzer der Kaiserlichen Marine 1906 - 1918" by Axel Grießmer
"German Warships 1815-1945" by Erich Gröner
"Die Geschichte der deutschen Schiffsartillerie" by Paul Schmalenbach
"German Capital Ships of World War Two" by M.J. Whitley
---
Special help from Peter Lienau
