The famous battleship Bismarck
Photograph courtesy Lee Francis Wilhelmsen

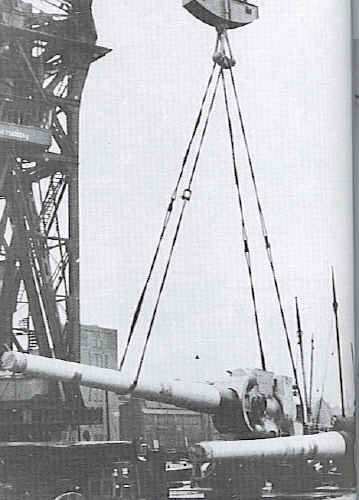

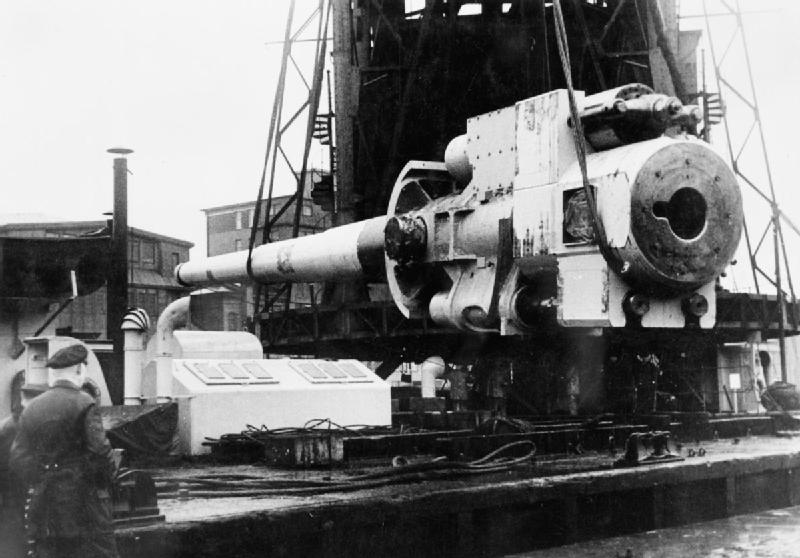

38 cm guns being hoisted aboard Tirpitz during construction

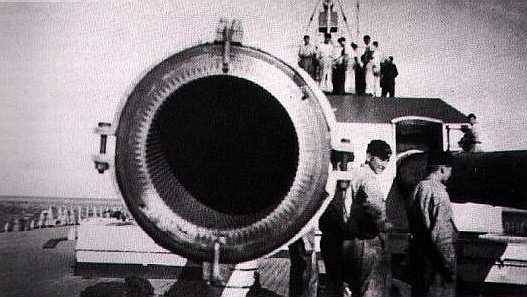

Another view of one of the 38 cm guns being assembled on to Tirpitz

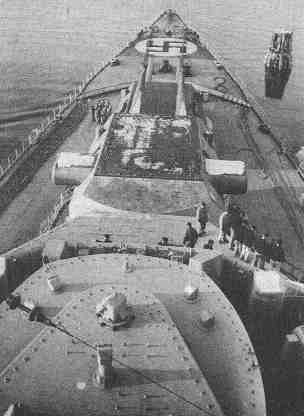

Bow turrets of Bismarck
Note the "Flying Bridge" wings and that turret "Anton" has rangefinders, which were later removed

Another view of the forward turrets of Bismarck
Note missing rangefinders on turret "Anton" which were sold to the USSR

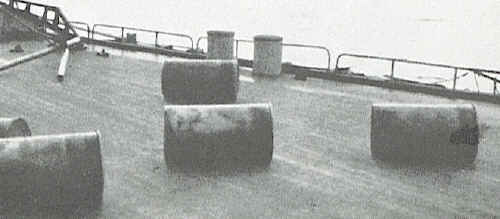

A close view of Tirpitz's Turret "Dora"

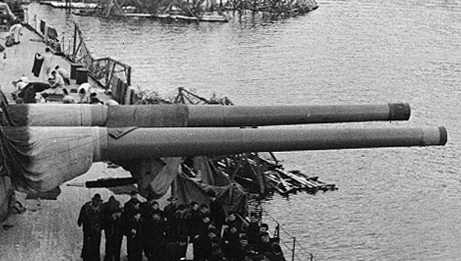

Profile view of Tirpitz guns
Detail from U.S. Naval Historical Center Photograph # NH 71388

Cross-section of a German 38 cm (14.96") APC Projectile
Original sketch by William Jurens with additional work by Tony DiGiulian

Expended 38 cm Hauptkartusche (Main Charges) after a practice shoot on Tirpitz

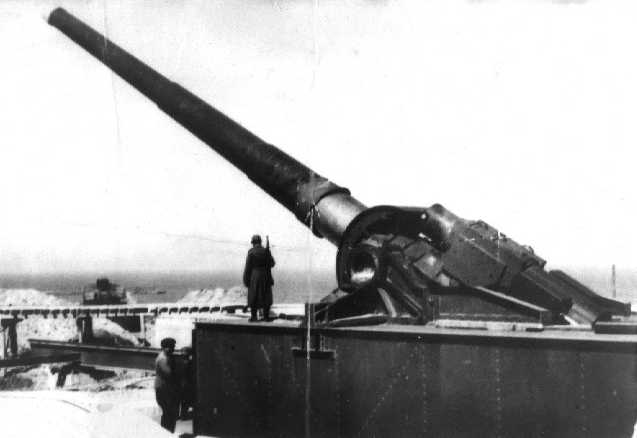

Well-known picture of 38 cm gun of Battery Todt
Note the shadow on the left, showing the profile of the gun shield
Photograph by Herman Harz
Library of Congress Photograph ID LC-USZ62-17640

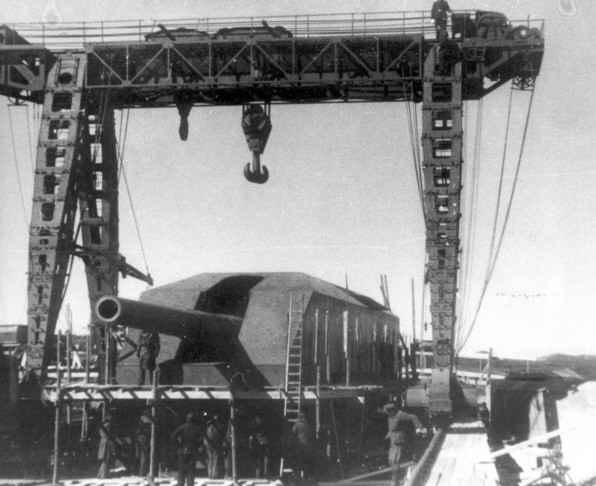

One of the four 38 cm SK C/34 guns in BSG-39 mountings at Battery Hanstholm II, Hanstholm (Hanstead), Denmark, in the Summer of 1941
Photograph courtesy of Museumcenter Hanstholm and used here by permission

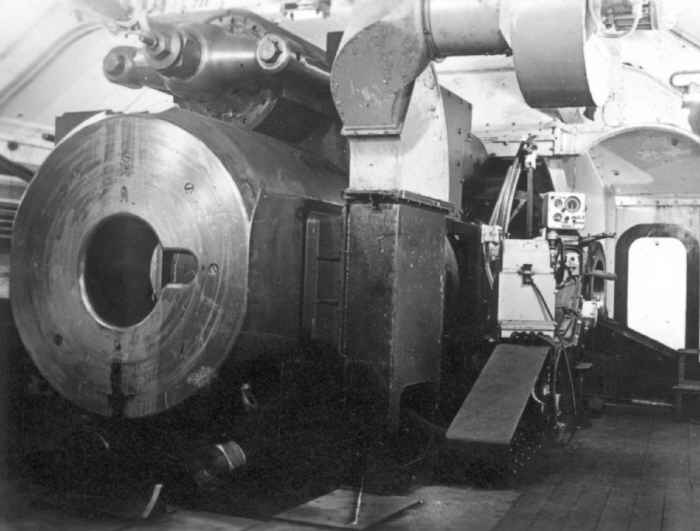

Breech end of one of the 38 cm guns at Battery Hanstholm II
Photograph courtesy of Museumcenter Hanstholm and used here by permission

One of the 38 cm guns at Battery Hanstholm II
Photograph courtesy of Museumcenter Hanstholm and used here by permission

38 cm gun on display
The other guns at this site were scrapped in the mid-1950s
Click on this picture for a larger image
Photograph courtesy of Museumcenter Hanstholm and used here by permission

Additional Images at

Axis History Factbook

Kristiansand Kanonmuseum, Norway
