Italy
381 mm/40 (15") Model 1914
Updated 26 May 2012

These weapons were intended for the Francesco Caracciolo class battleships.  Construction of these ships was suspended in 1916 and the guns were then used on monitors, floating batteries (pontoons) and coastal fortifications.

During World War II the monitor Faà di Bruno (redesignated as GM 194) still carried these weapons and there were a total of ten guns mounted in Italian coastal defenses as of June 1940.  During modernization programs prior to World War II, the coastal fortifications at Genoa and Augusta had their turrets modified for increased elevation.

There were three types of these guns, Elswick Pattern "A" (Pozzuoli), Vickers Mark "A" (Terni) and Schneider-Ansaldo.  The first two were wire-wound but the last was of monobloc construction.

Unlike many other European 38 cm guns, the bore of this gun was actually 381 mm (15.0").  Actual bore length may have been 40.9 calibers.

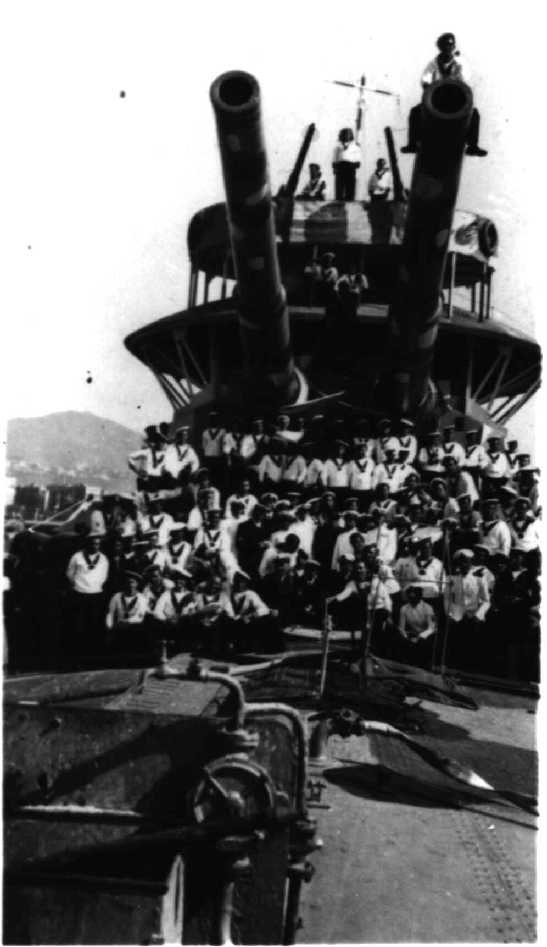

381 mm/40 (15") guns on Italian monitor Faà di Bruno
Photograph courtesy of Eugenio Vajna, whose grandfather was her last captain

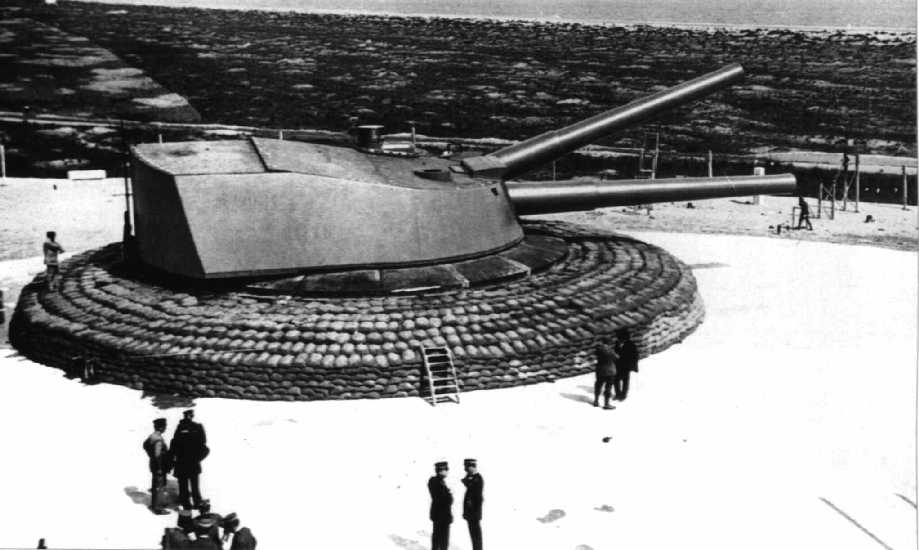

Battery Amalfi/S.Panagia
Ufficio Storico Marina Militare (USMM) Photograph

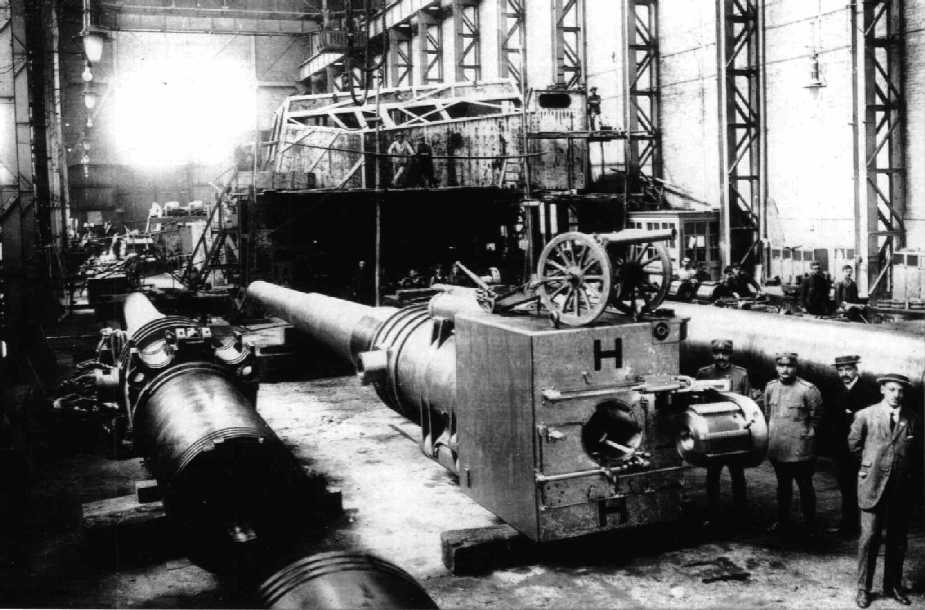

381 mm/40 (15") guns under construction at the Ansaldo Works
The heavy box is apparently a counter weight
Photograph courtesy of Eugenio Vajna

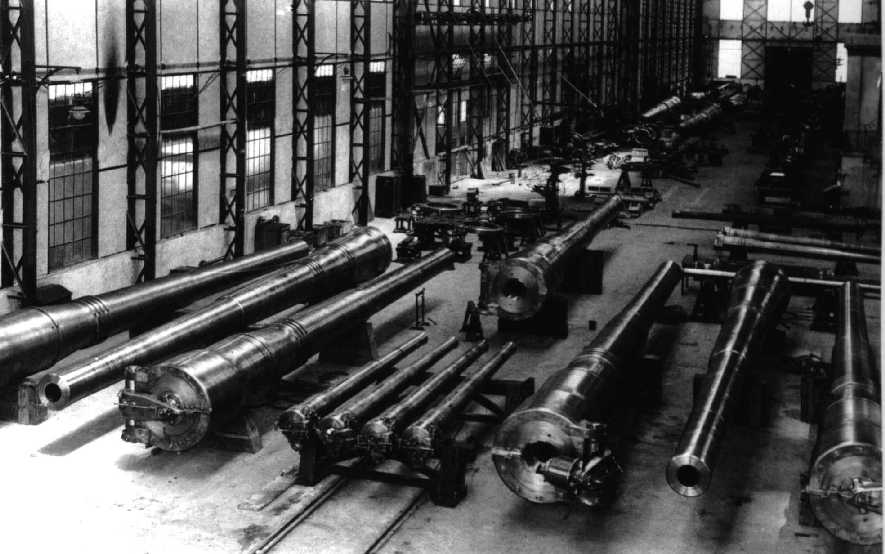

381 mm/40 (15") and smaller guns under construction at the Schneider-Ansaldo Works
Photograph courtesy of Eugenio Vajna

.
Gun Characteristics
.
Designation 381 mm/40 (15") Model 1914
Ship Class Used On Battleship (never completed):  Francesco Caracciolo Class
Monitors:  Faà di Bruno and Alfredo Cappellini
Pontoons:  Sabotino (ex Tina), Monte Santo (ex Jella), Monte Grappa, Montello and Monte Novegno
Date Of Design 1914
Date In Service 1916
Gun Weight Including Breech
   Armstrong:  187,170 lbs. (84,900 kg)
   Vickers:  184,800 lbs. (83,825 kg)
   Ansaldo:  138,000 lbs. (62,600 kg)

Breech weight
   Armstrong:  2,866 lbs. (1,300 kg)
   Vickers:  5,500 lbs. (2,495 kg)
   Ansaldo:  4,190 lbs. (1,900 kg)

Gun Length oa
(not including breech)
Armstrong and Vickers:  620.3 in (15.755 m)
Ansaldo:  620.1 in (15.750 m)
Bore Length about 600.0 in (15.240 m)
Rifling Length N/A
Grooves N/A
Lands N/A
Twist N/A
Chamber Volume N/A
Rate Of Fire 1.5 - 2 rounds per minute
.
Ammunition
.
Type Bag
Projectile Types and Weights AP - 1,949 lbs. (884 kg)
Bursting Charge N/A
Projectile Length N/A
Propellant Charge 326 lbs. (148 kg)
Muzzle Velocity 2,297 fps (700 mps)
Working Pressure N/A
Approximate Barrel Life 150 rounds
Ammunition stowage per gun Faà di Bruno:  45 rounds
Others:  N/A
.
Range
.
Elevation With 1,949 lbs. (884 kg) AP shell
Range @ 20 degrees 21,650 yards (19,800 m)
Range @ 30 degrees
(World War II Coastal Artillery)
29,850 yards (27,300 m)
.
Mount / Turret Data
.
Designation Twin Turrets
   Francesco Caracciolo (4), monitors (1)

Single Mountings
   Pontoons (1)

Weight  about 551 tons (550 mt)
Elevation
(see Note)
about -5 / +20 degrees
Elevation Rate N/A
Train +162 / -162 degrees
Train Rate N/A
Gun recoil N/A
Loading Angle N/A
Note:  The turret on Faà di Bruno was modified to allow +30 degrees elevation.  Pontoons had a single open mounting with +35 degrees maximum elevation and +/- 15 degrees of train.  The coastal fortifications at Genoa and Augusta were modified to allow +30 degrees elevation.
.
Data from
"Naval Weapons of World War Two" by John Campbell
"L'artiglieria Italiana nella Grande Guerra" (Italian Artillery of the Great War) by Andrea Curami and Alessandro Massignani
"Italian Warships of World War II" by Aldo Fraccaroli
---
Special help from Eugenio Vajna and Caspar Vermeulen
