Italy
OTOBreda 40 mm/70 Bofors
Compact, "Fast Forty" and other Variations

Updated 26 May 2012

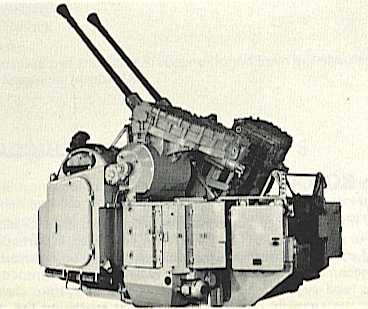

40 mm/70 Type 64

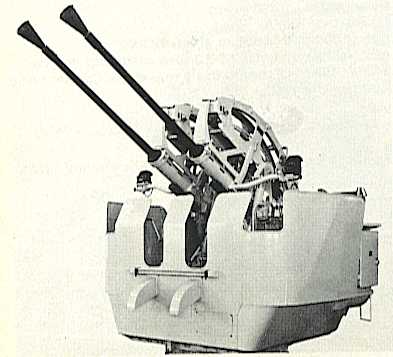

40 mm/70 Type 106

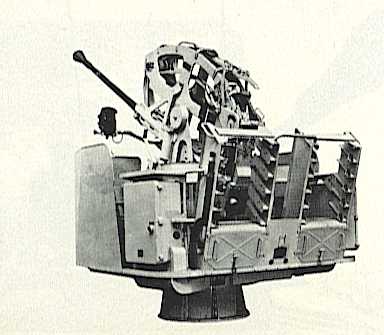

40 mm/70 Type 107


40 mm/70 Type 564

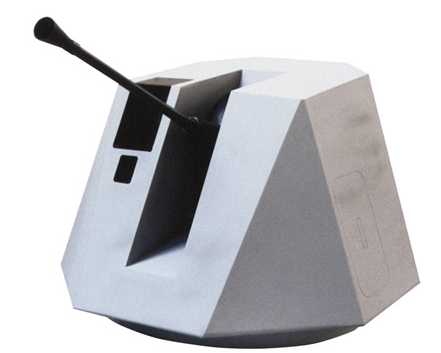

40 mm/70 Type 520
Image copyrighted by OTO-Melara

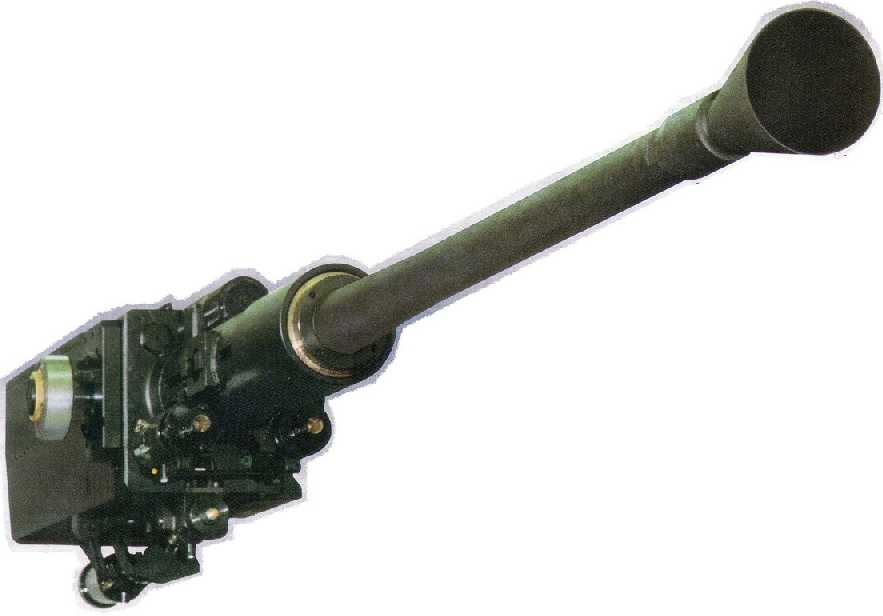

40 mm/70 Gun Assembly
Image copyrighted by OTO-Melara

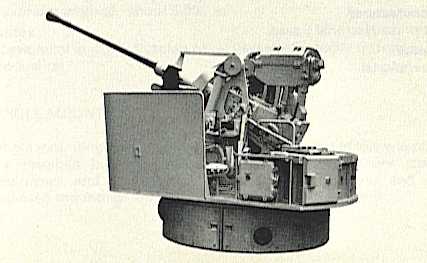

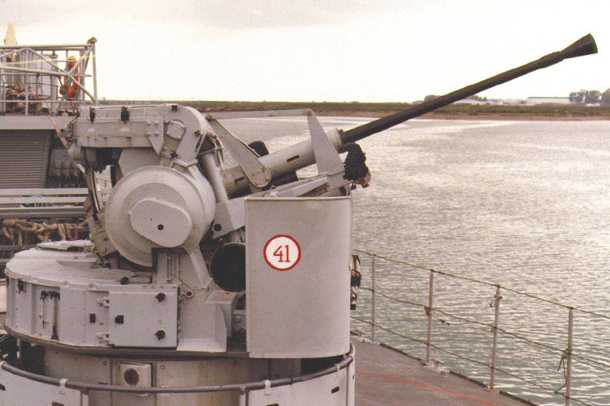

Spanish-built 40 mm/70 OTOBreda Type 564
Photograph copyrighted by FABA (formerly IZAR)

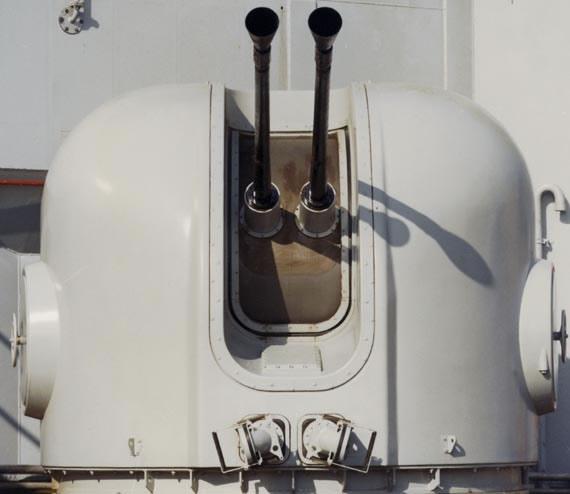

Twin Fast Forty
Photograph copyrighted by OTO-Melara

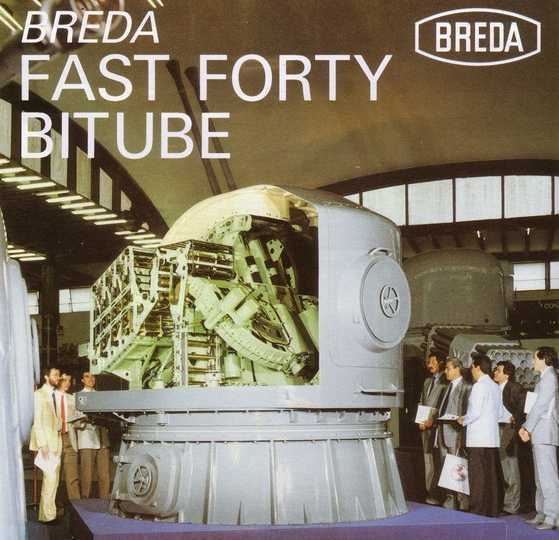

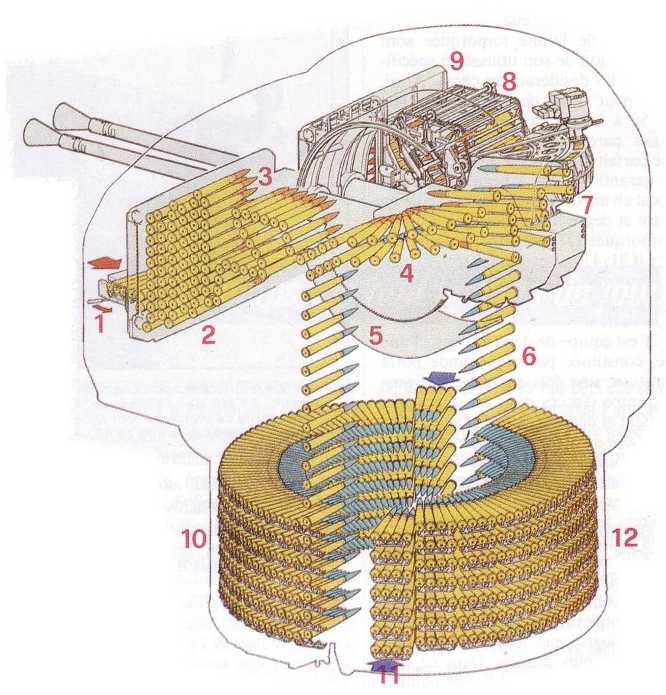

40 mm/70 Twin Cutaway showing ammunition feeds
Image copyrighted by OTO-Melara


Ammunition supply of Twin Fast 40 showing dual feeds
Blue-tip = PFHE    Red-tip = APFSDS
1 = Entry point for APFSDS rounds resupply                7 = Assisted ammunition loading system
2 = Left magazine for APFSDS rounds                8 = Right conveyor for APFSDS rounds
3 = Left conveyor for APFSDS rounds                9 = Right magazine for APFSDS rounds
4 = Twin ammunition feed (upper = APFSDS, lower = PFHE)              10 = Left magazine for PFHE rounds
5 = Left conveyor for PFHE rounds              11 = Entry point for PFHE rounds resupply
6 = Right conveyor for PFHE rounds              12 = Right magazine for PFHE rounds
Image copyrighted by OTO-Melara

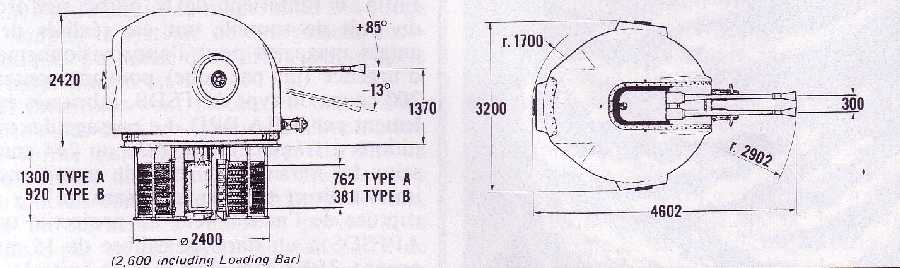

40 mm/70 Twin Compact Dimensions
Image copyrighted by OTO-Melara

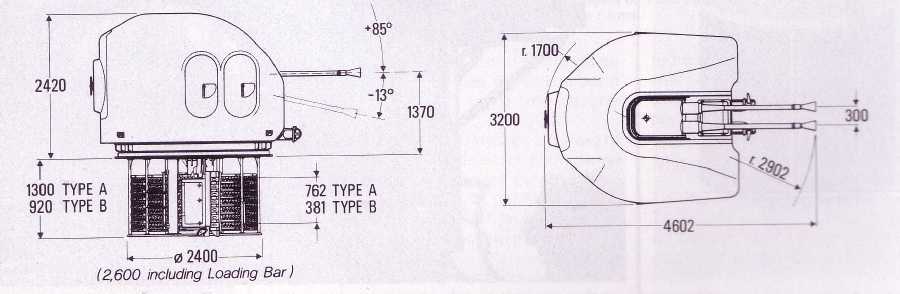

40 mm/70 Fast Forty Dimensions
Image copyrighted by OTO-Melara
