10"/40 (25.4 cm) Mark 3
Pictures

Updated 26 December 2008

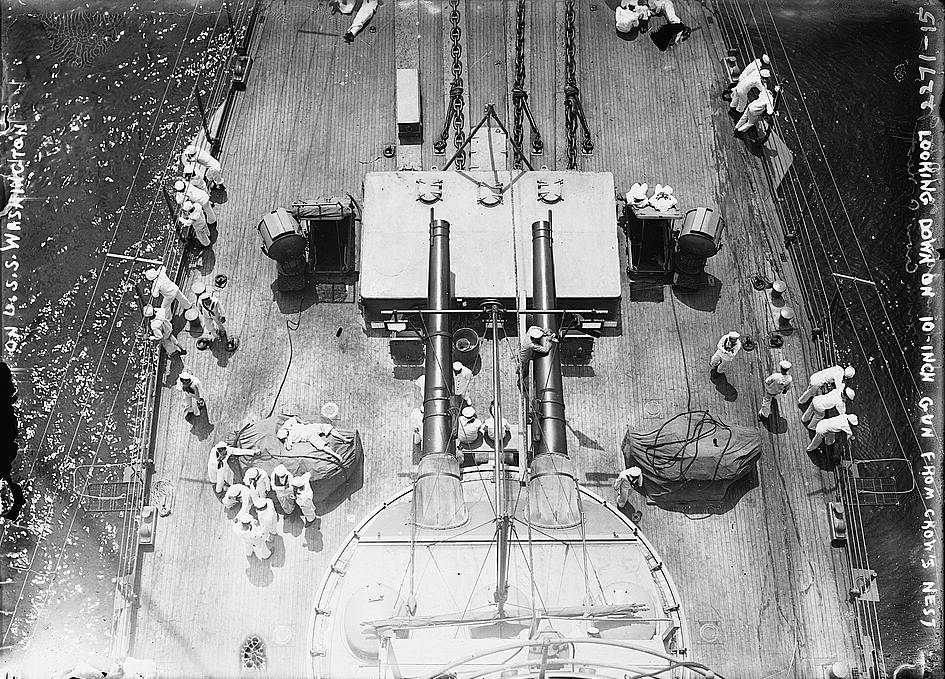

10"/40 (25.4 cm) turret on USS Washington ACR-11 circa 1915
Note that the top of the circular barbette is clearly visible
Bain News Service Photograph
Library of Congress Photograph ID LC-DIG-ggbain-09055

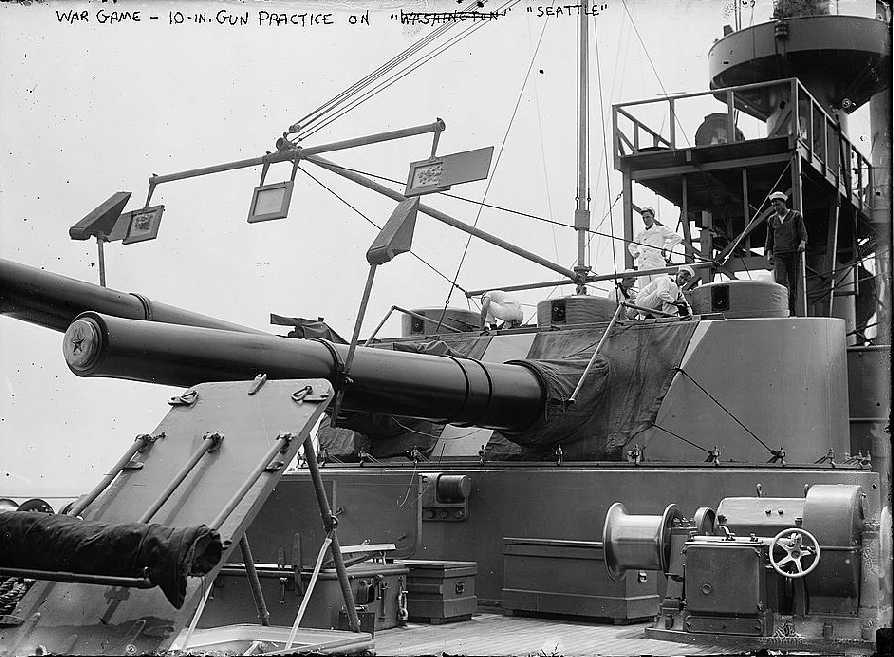

Practice shoot aboard USS Seattle ACR-11 circa 1916
Note how "Washington" has been crossed out.  She was renamed "Seattle" on 9 November 1916.
Bain News Service Photograph
Library of Congress Photograph ID LC-DIG-ggbain-09615

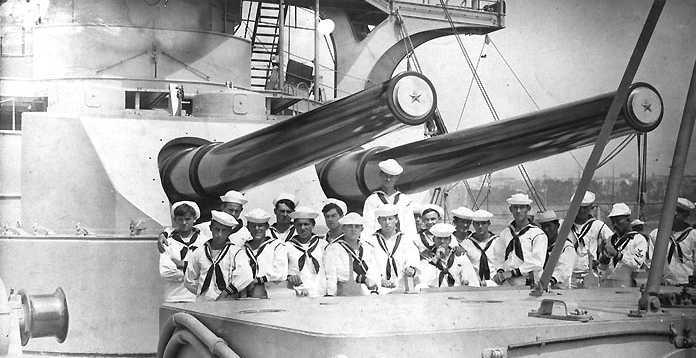

Bow turret of USS Tennessee ACR-10 about 1907-1908
U.S. Naval Historical Center Photograph # NH 94013

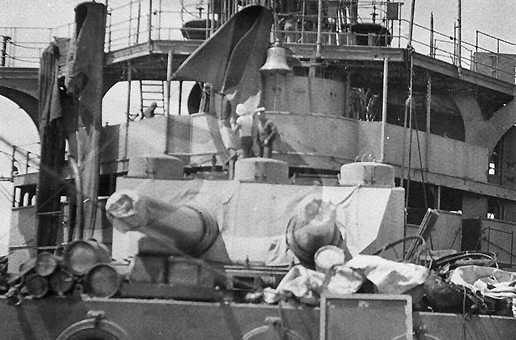

Bow turret of USS Memphis ACR-10 (ex-Tennesse) after she was wrecked in 1916
U.S. Naval Historical Center Photograph # NH 82102

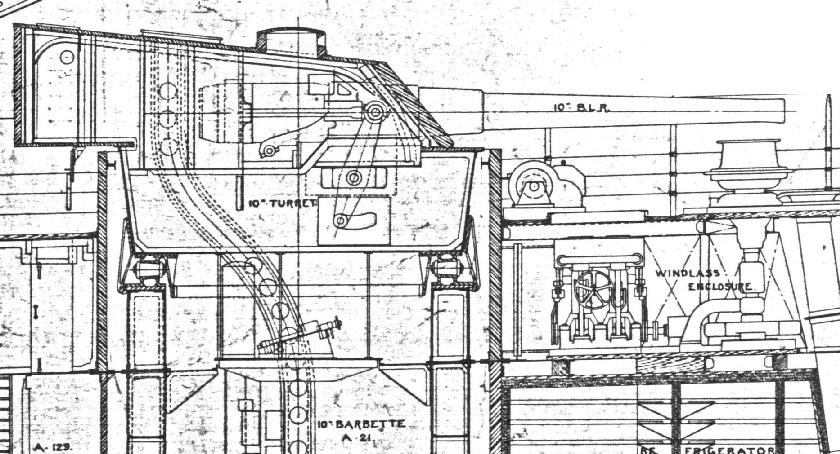

Sketch of 10"/40 (25.4 cm) turret
Note the counter recoil "grasshopper" arms and spring box
