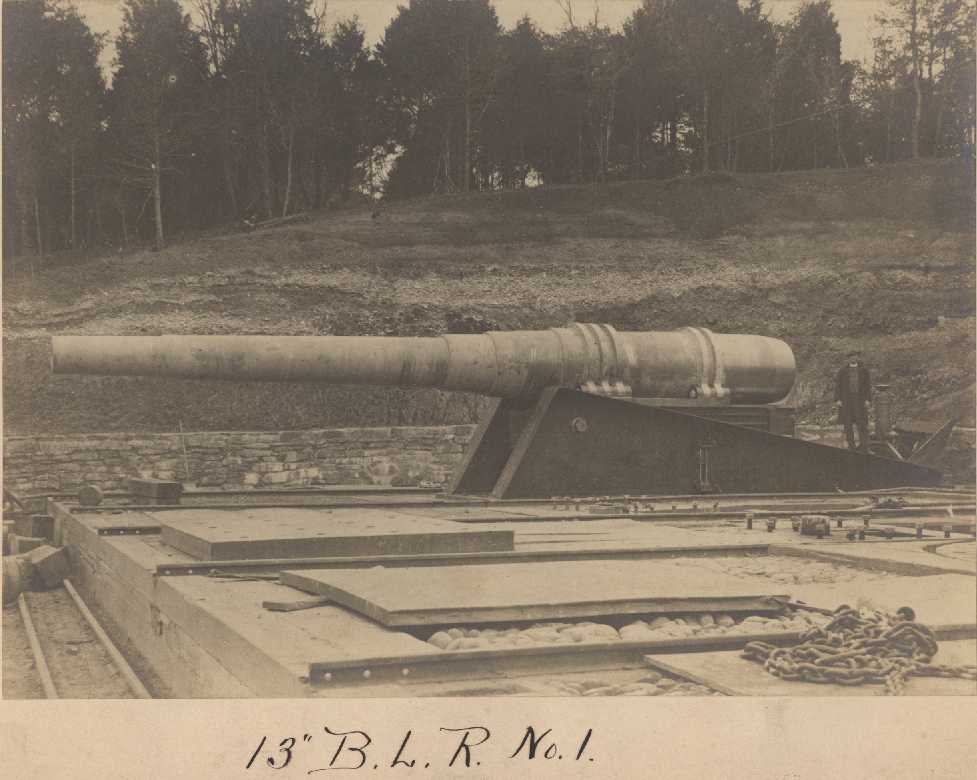

The first 13" (33 cm) gun on the Indian
Head Proving Grounds
United States National Archives Photograph
courtesy of James Poyner

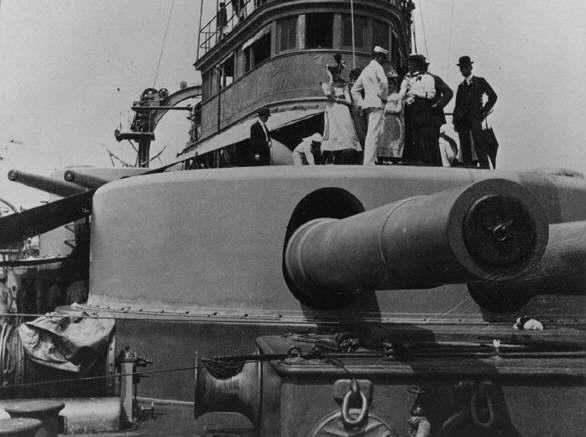

Forward turret on USS Oregon B-3
U.S. Naval Historical Center Photograph
# NH 82644

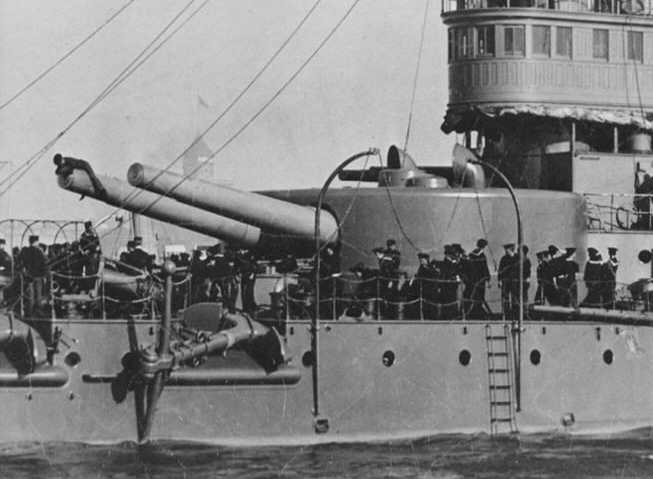

Another view of the forward Turret on USS
Oregon B-3
U.S. Naval Historical Center Photograph
# NH 42969

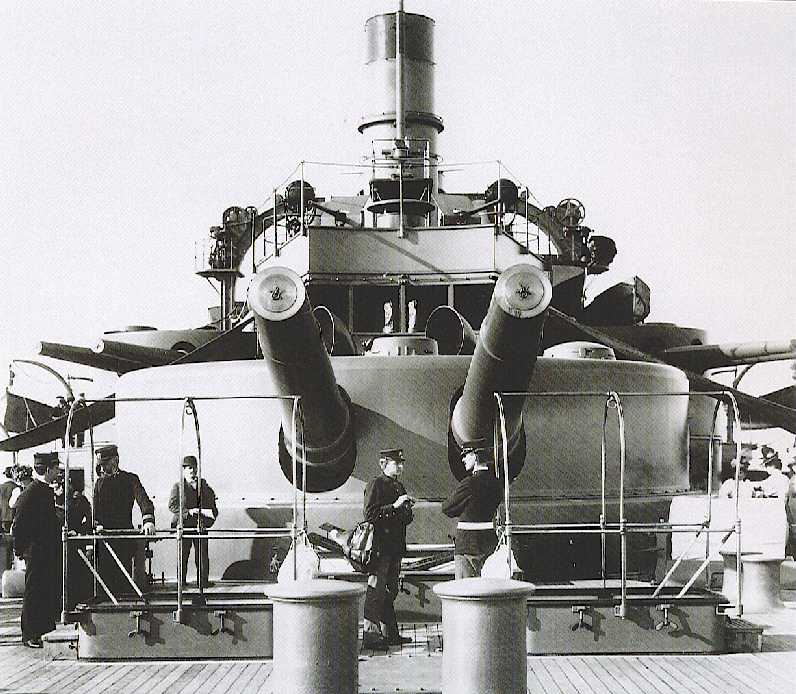

After turret of USS Oregon B-3
This picture shows a typical armament
of US pre-dreadnoughts of this time. 13" (33 cm) main armament, 8"
(20.3 cm) secondaries and 3-pdr (1.85") anti-torpedo boat guns

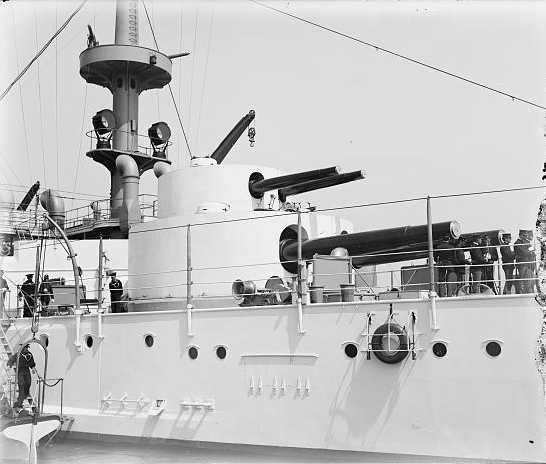

USS Kearsarge B-5
Note the super-imposed 8" (20.3 cm) turret
on top of the 13" (33 cm) turret
Detroit Publishing Company Collection
Photograph
Library of Congress Photograph ID LC-D4-20480

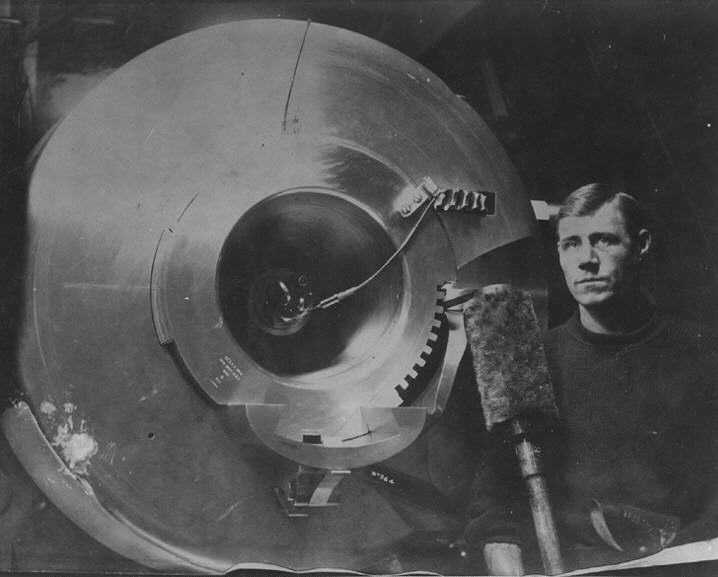

Breech of one of the 13" (33 cm) guns on
USS Oregon B-3
U.S. Naval Historical Center Photograph
# NH 1895

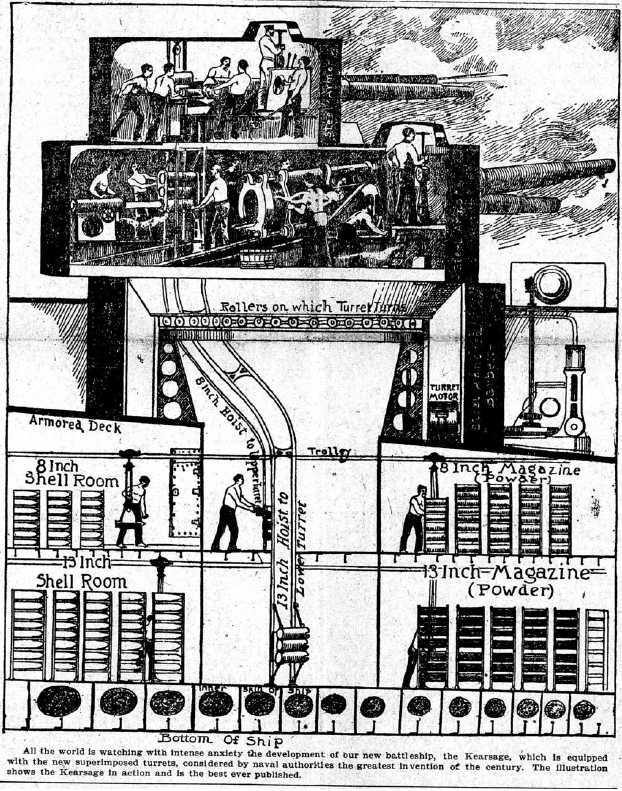

Newspaper sketch of Kearsage Mounting
Text in this article says that the USN
considered this mounting to be more effective than those on USS Iowa (B-4)
by a factor of 42 to 24
Image from "America's
Great Sea Terror" newspaper article in "The Appeal" (Minneapolis-St.
Paul) dated 02 June 1900

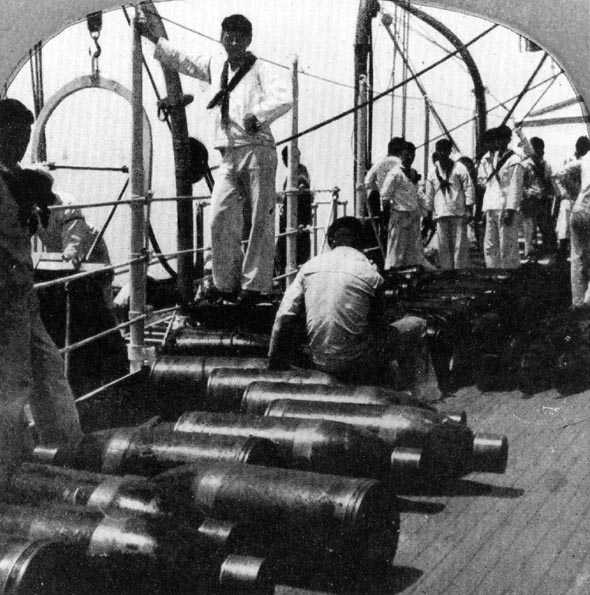

13" (33 cm) projectiles being loaded aboard
USS Kentucky B-6 about 1900
U.S. Naval Historical Center Photograph
# 82666

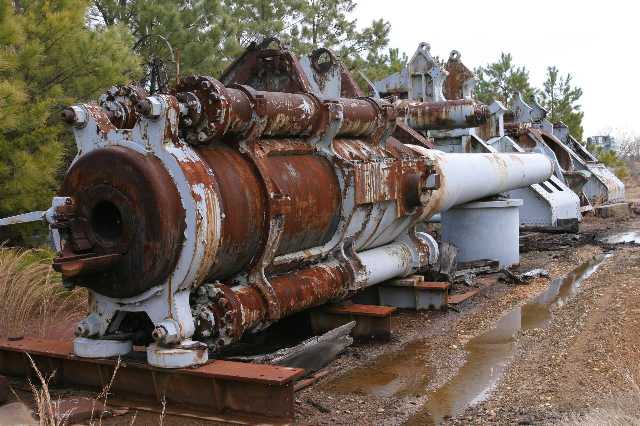

This gun started life in 1898 as the 13"/35
(33 cm) Mark 2 Mod 1 Serial Number 23. It was later converted to
the 16"/28.8 (40.6 cm) Mark A Mod 0 Experimental Gun, the USN's first gun
of that caliber. Gun was bored out and hooped to the muzzle.
It is shown here rusting away in March 2005 at the "Bone yard" at the Naval
Surface Warfare Center in Dahlgren, Virginia. Maximum range in this
16" (40.6 cm) configuration with a 2,100 lbs. (953 kg) projectile and a
muzzle velocity of 1,800 fps (549 mps) was 25,100 yards (22,950 m).
Rifling was 96 grooves uniform RH 1 in 20.
Photograph copyrighted by NavWeaps.com
