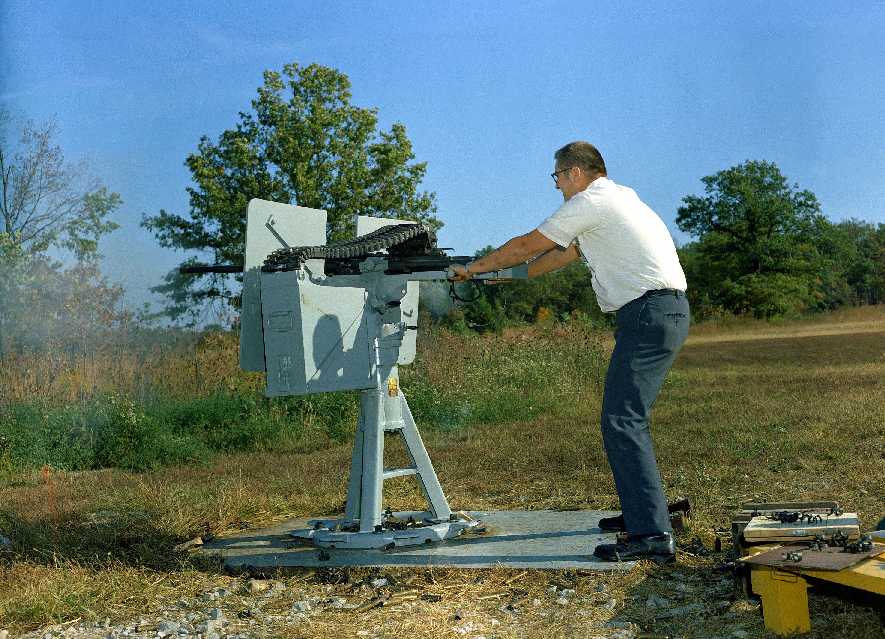

Test firing a 20 mm Mark 16 Mod 5 at the
Naval Ordnance Station, Louisville, Kentucky in October 1969
U.S. Navy Photograph No. DN-SC-90-01946

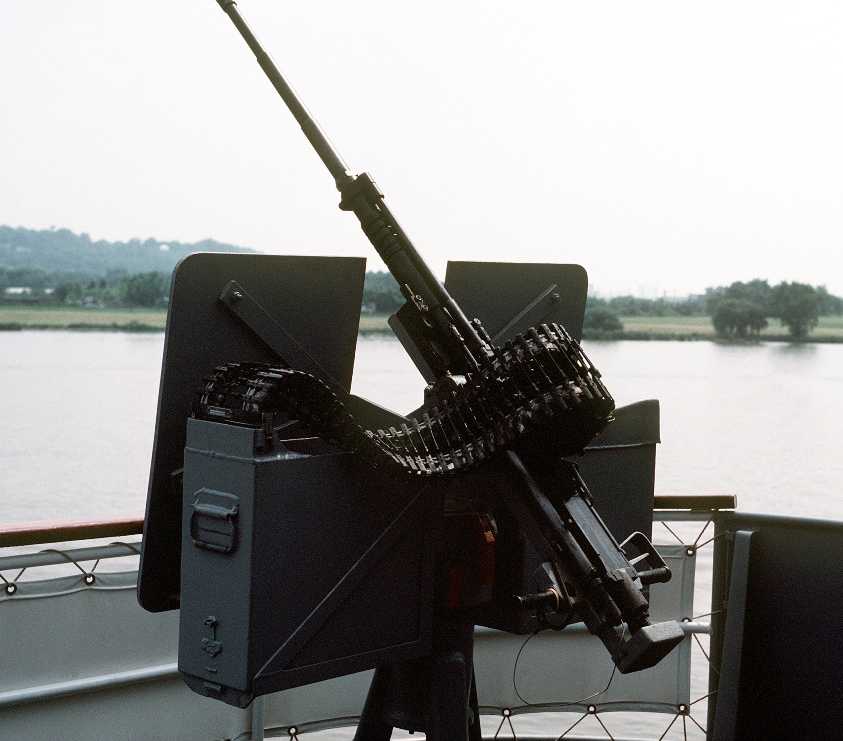

20 mm Mark 16 on USS Hoist ARS-40 in July
1983
Note that the shield and ammunition box
did not elevate with the weapon
U.S. Navy Photograph No. DN-ST-83-11237

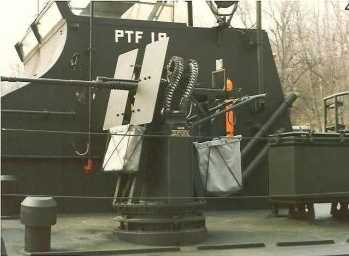

Mark 16 on PTF-18 at Coastal River Division
21, Great Lakes, Illinois in 1974
Picture copyrighted by Jim Mottern and
use here courtesy of Robert Stoner of Warboats

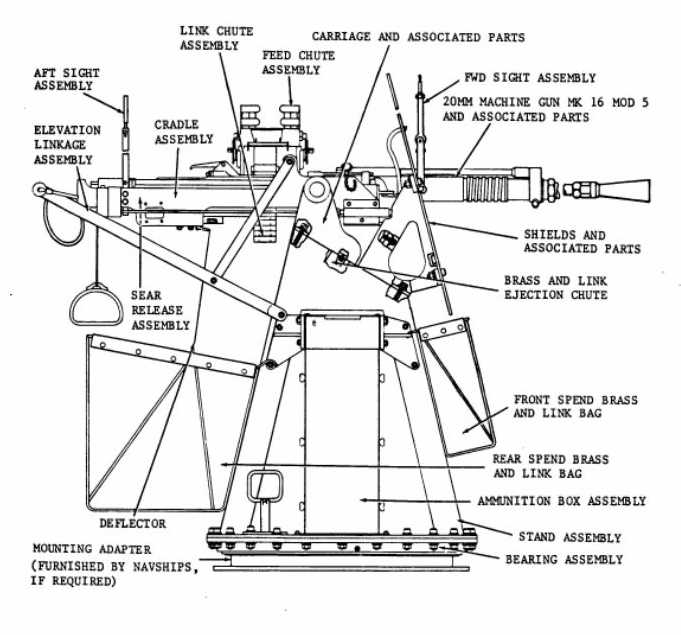

20 mm Mark 16 on Mark 67 Mod 1 Mounting
Sketch from NAVORD 3990 and use here courtesy
of Robert Stoner of Warboats
Click on this picture for a larger image
