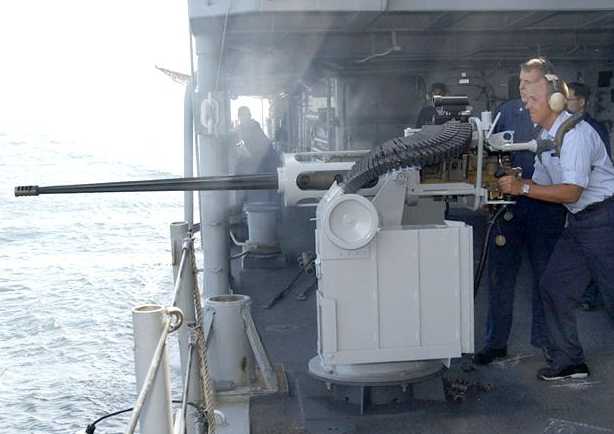

Constable 1st Degree Thomas Pedersen of
the Danish Navy corvette Niels Juel (F 354) fires a 25 mm Mark 38 MGS aboard
USS Anzio CG-68 in June 2002
U.S. Navy Photograph No. 020612-N-0872M-502
25 mm Mark 38 on USS Peleliu LHA-5 in October
2001
U.S. Navy Photograph No. 011011-N-1523C-003

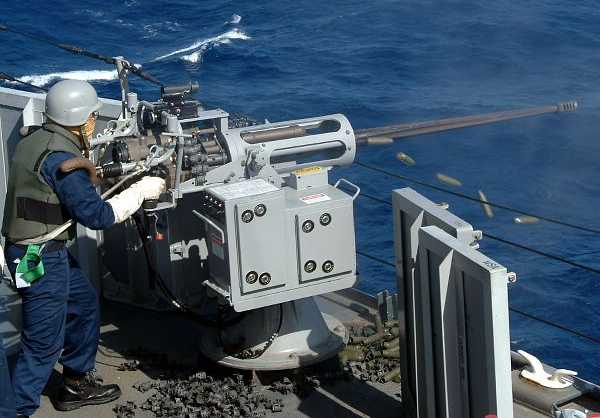

25 mm Mark 38 aboard USS Fort McHenry LSD-43
in December 2004
U.S. Navy Photograph No. 041210-N-2970T-003

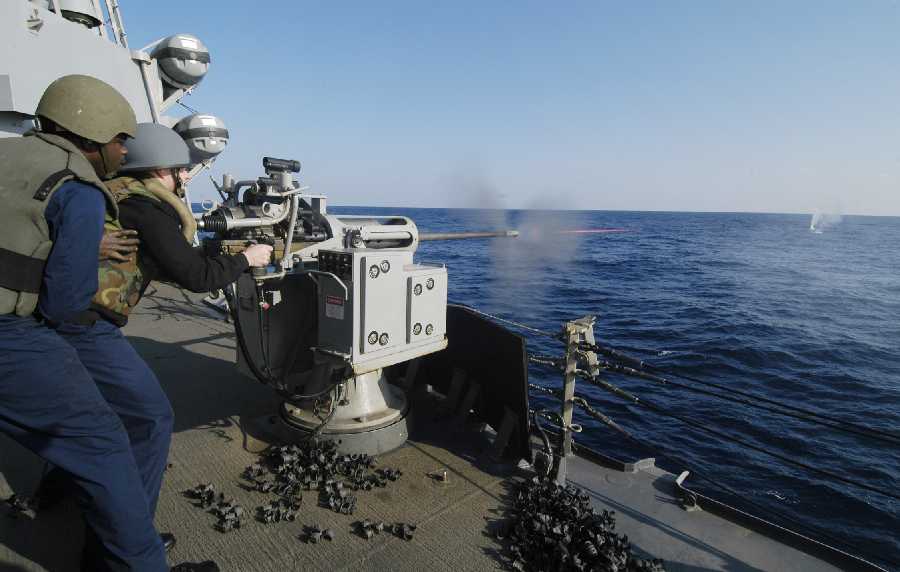

25 mm Mark 38 gun crew firing at a "killer
tomato" aboard USS Curtis Wilbur DDG-54 in January 2006
Note the large piles of links
U.S. Navy Photograph No. 060112-N-2385R-194

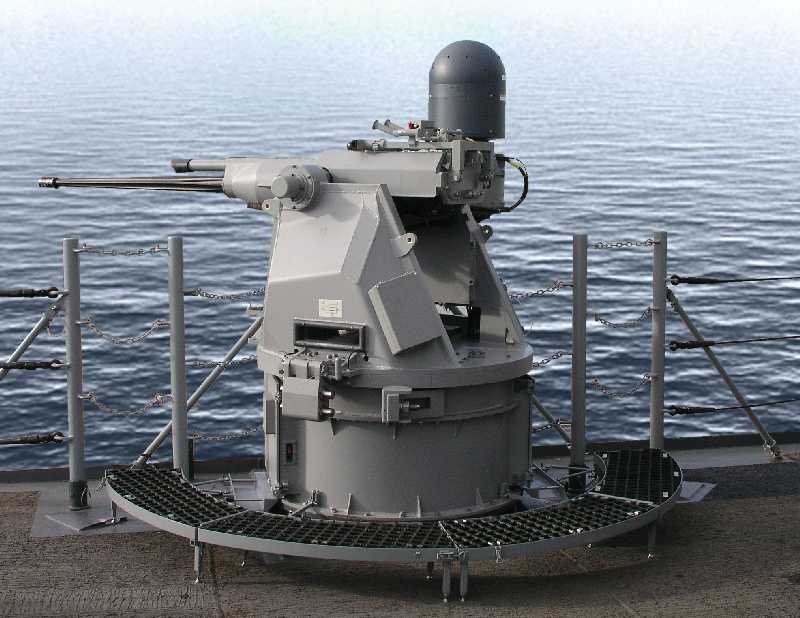

Remotely Controlled and Stabilized 25 mm
Mark 38 Mod 2
Photograph copyrighted by United
Defense

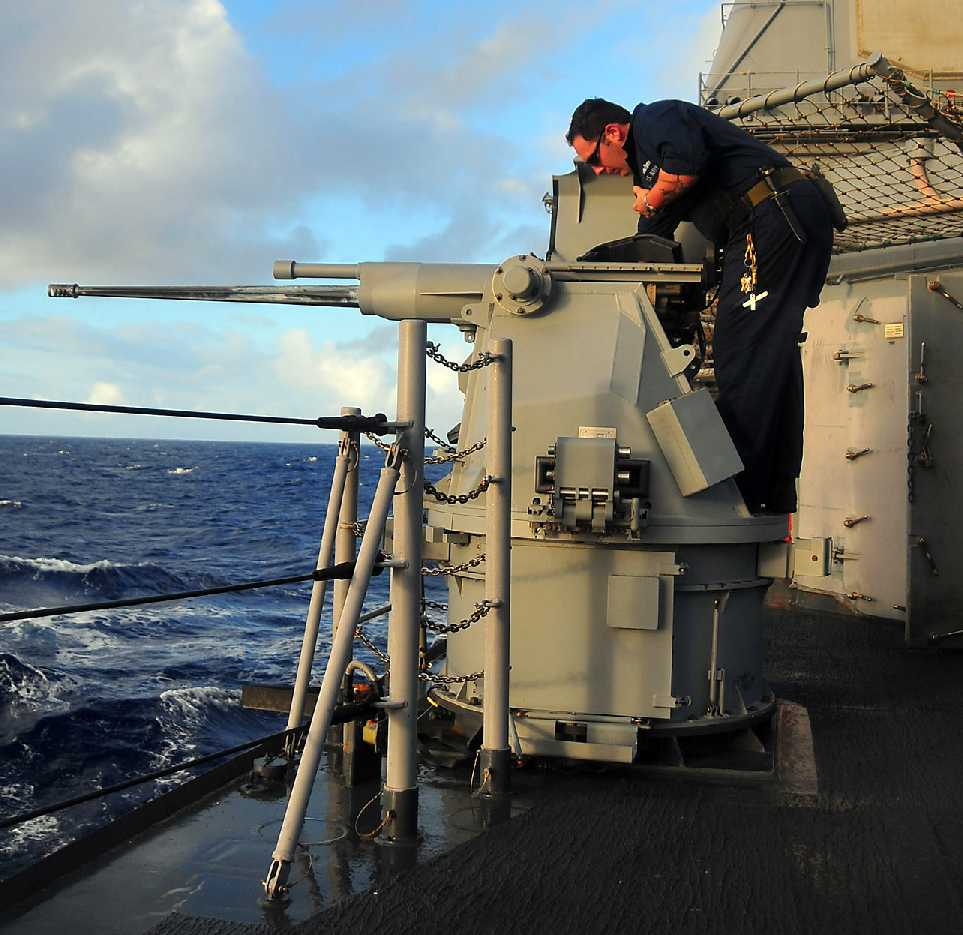

Performing maintenance to a 25 mm Mark
38 Mod 2 gun system aboard USS Lake Champlain CG-57 in January 2009
The tube above the gun barrel is the spent
cartridge ejecter port
U.S. Navy Photograph No. 090129-N-4774B-007

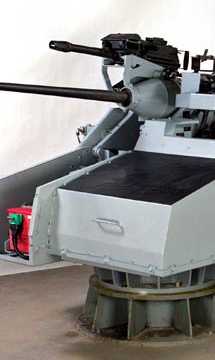

Mark 96 Mounting with 40 mm Mark 19 Grenade
launcher on top and 25 mm Cannon on bottom
Photograph copyrighted by United
Defense
Operations Specialist 2nd Class Matthew
Burton manning a Mark 96 on USS Chinook PC-9 in March 2003
Note the feed mechanism for the Mark
19 Grenade Launcher
U.S. Navy Photograph No. 030321-N-0000G-009

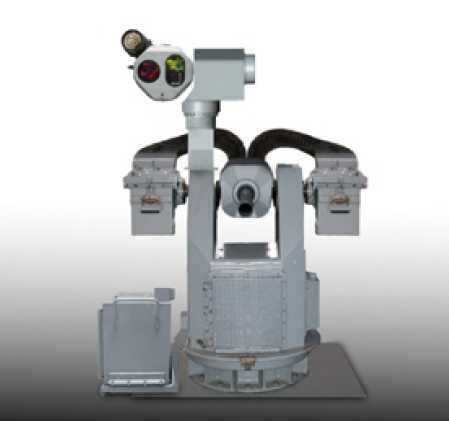

MLG 25 showing dual-ammunition feed
Photograph copyrighted by Rheinmetall
AG

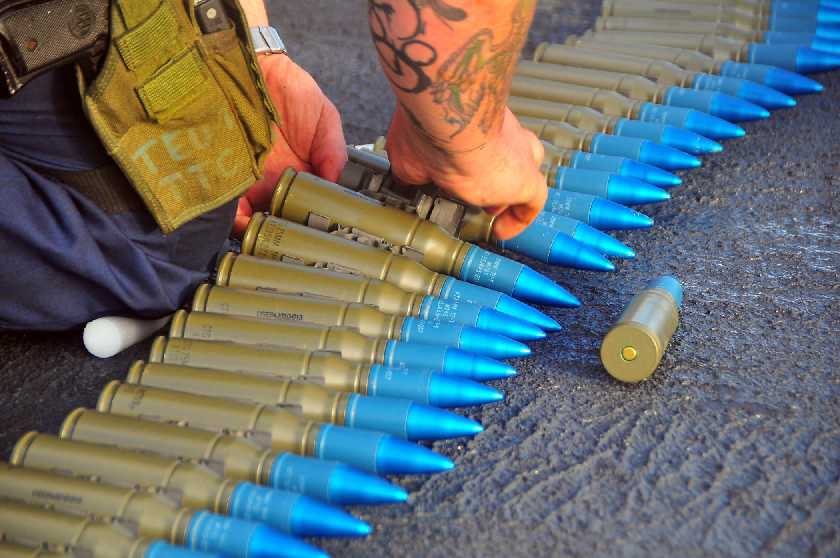

25 mm M793 TP-T ammunition (target practice
rounds with tracer) aboard USS Lake Champlain CG-57 in January 2009
U.S. Navy Photograph No. 090129-N-4774B-008
