4"/50 (10.2 cm) Marks 7, 8, 9 and 10
Pictures
Updated 14 January 2011

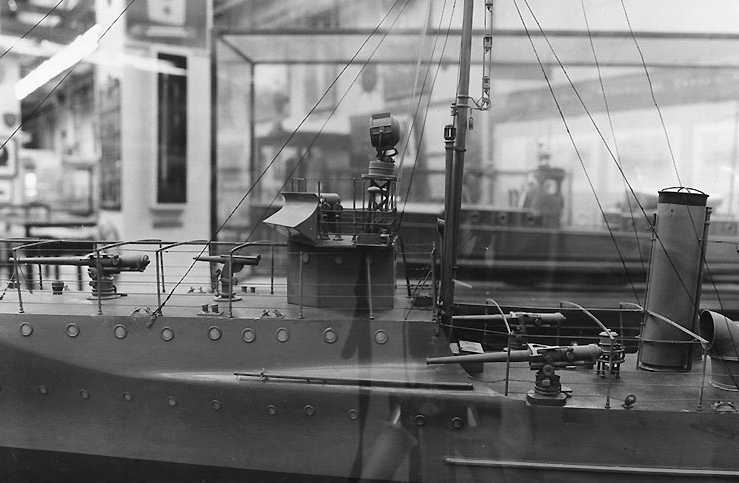

Scale model of USS Sampson D-63 at the
Navy Memorial Museum, Building 76, Washington Navy Yard, Washington, D.C.
circa 1973-1975
Note how the waist 4" (10.2 cm) guns could
fire directly forward if necessary, but that this position also meant that
they were difficult to work in a seaway
Gun directly forward of the bridge is
probably an Automatic 1-pdr on an AA
mounting
U.S. Naval Historical Center Photograph
# NH 103754

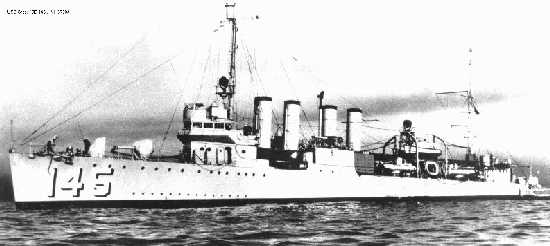

USS Greer D-145
Note the "bandstands" between the funnels
on this later destroyer, which allowed the 4"/50 (10.2 cm) guns on these
high platforms to be worked in almost any kind of weather, an advantage
in the North Atlantic
On 4 September 1941 USS Greer became the
first US warship in World War II to attack a German U-boat, U-652
USN Photograph

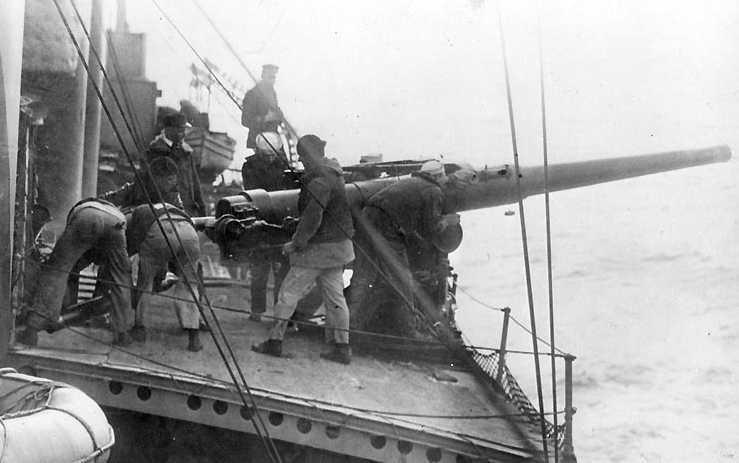

USS Little D-79
This picture shows one of the "bandstand"
mounted guns in action during target practice in 1918
Note the sailors on the left picking up
a round passed from a handling room below
Detail from U.S. Naval Historical Center
Photograph # NH 41714

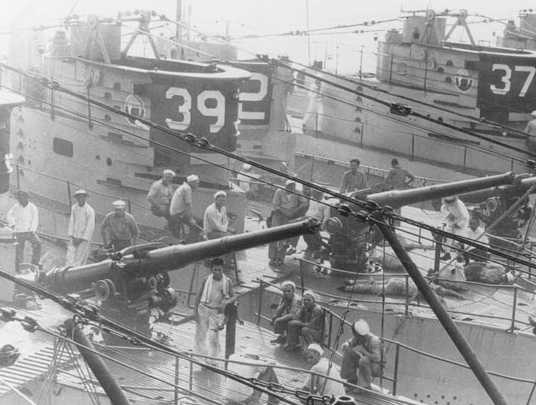

Wet-mount 4"/50 (10.2 cm) guns aboard Submarine
Division 17
Picture taken about 1930 at Tsingtao,
China. Identifiable submarines present include S-39 (SS-144), S-37
(SS-142) and S-41 (SS-146). The boat closest to the camera is probably
S-36 (SS-141).
Detail from U.S. Naval Historical Center
Photograph # NH 51832

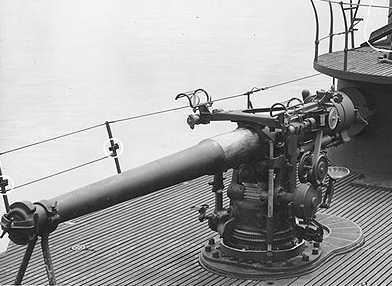

Wet mount 4"/50 (10.2 cm) on USS Flier
SS-250 in April 1944
Detail from U.S. Naval Historical Center
Photograph # NH 98328

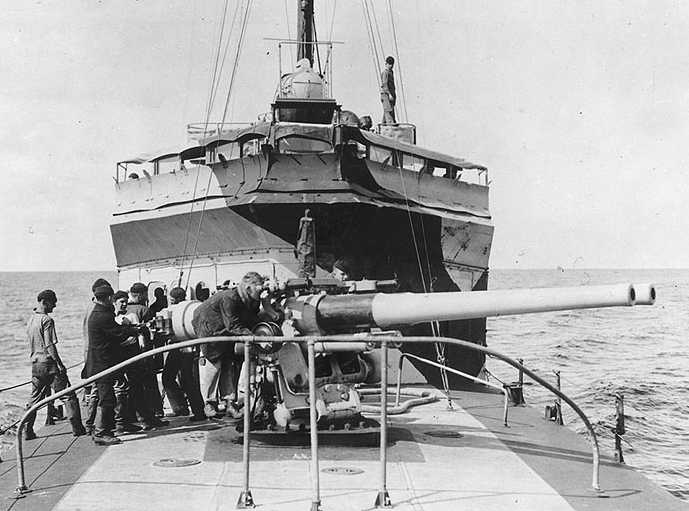

Twin 4"/50 (10.2 cm) Mark 14 Mounting on
USS Stockton D-73 in 1918
Note the safety rails and the lack of
a gunshield
U.S. Naval Historical Center Photograph
# NH 50010

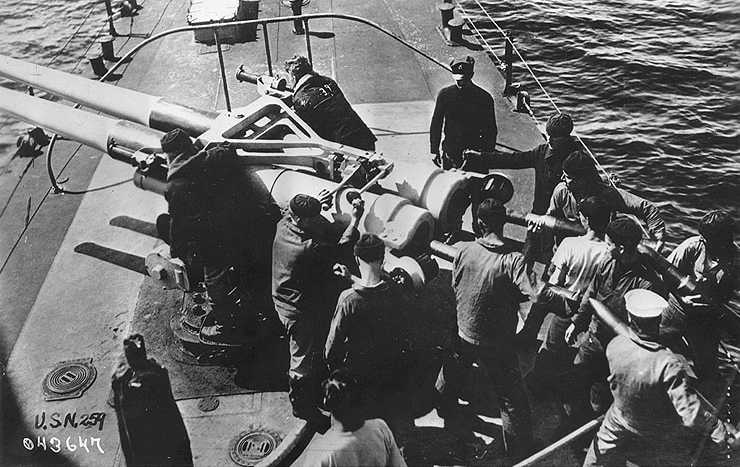

Overhead view of the twin mounting on USS
Stockton D-73
Note the cramped working conditions when
this mounting was trained abeam. At least USS Hovey DD-208 and probably
USS Stockton and USS Long DD-209 had hinged sponsons added around the bow
mounting to increase the working space.
U.S. Naval Historical Center Photograph
# NH 99599

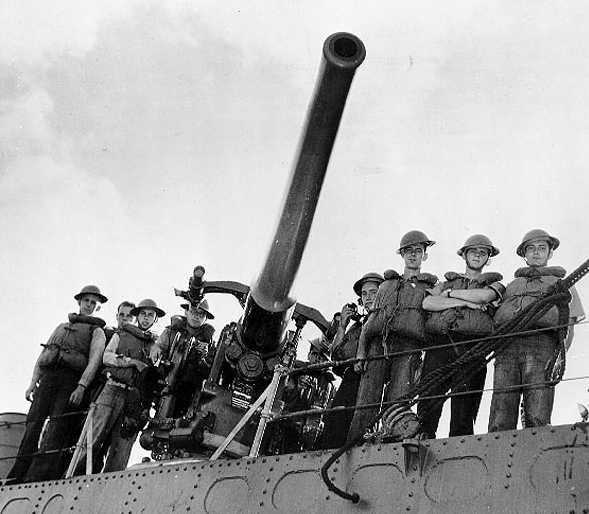

4"/50 (10.2 cm) gun No. 3 on USS Ward DD-139
This gun is credited with firing the first
US warshot of World War II when USS Ward sank a Japanese mini-submarine
at Pearl Harbor
U.S. Naval Historical Center Photograph
# NH 97446
This gun is now preserved as a memorial at the State Capitol grounds in St. Paul, Minnesota as shown in the following pictures

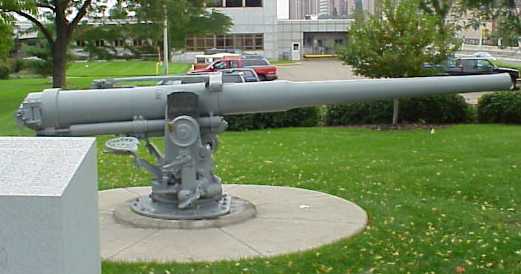

4"/50 (10.2 cm) gun No. 3 on USS Ward DD-139
now at the State Capitol grounds in St. Paul, Minnesota
USS Ward was sunk during the war, but
this gun survived as it had been removed when Ward was converted to fast
transport APD-16
Photograph copyrighted by Steve Griffith
and NavWeaps.com

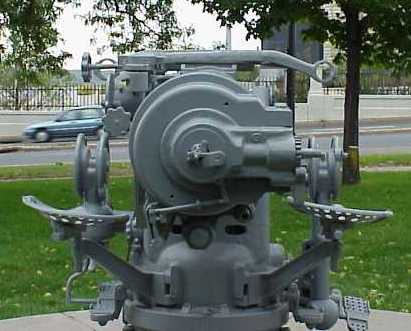

4"/50 (10.2 cm) gun from USS Ward DD-139
now at the State Capitol grounds in St. Paul, Minnesota
Photograph copyrighted by Steve Griffith
and NavWeaps.com
Memorial Plaque on 4"/50 (10.2 cm) gun
from USS Ward DD-139
Photograph copyrighted by Steve Griffith
and NavWeaps.com
Memorial Plaque on 4"/50 (10.2 cm) gun
from USS Ward DD-139, apparently installed by Ordnance workers at Pearl
Harbor
Photograph copyrighted by Steve Griffith
and NavWeaps.com
