8"/55 (20.3 cm) Mark 71
Pictures
Updated 05 March 2011

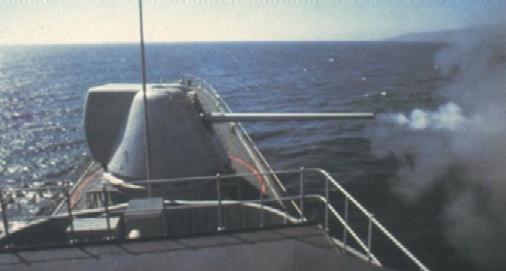

Firing trials aboard USS Hull DD-945
USN picture courtesy of Leo Fischer

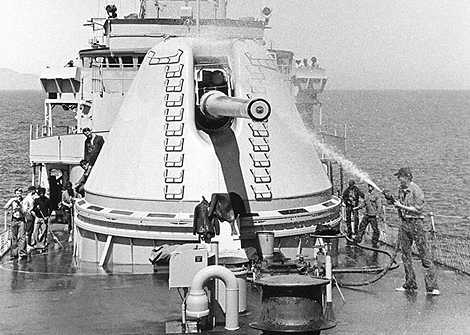

Cleaning the gun mount in September 1975
U.S. Naval Historical Center Photograph
# NH 98315
Side view of USS Hull in April 1975 showing
the relative sizes between the bow 8"/55 (20.3 cm) and the stern 5"/54
(12.7 cm) guns
U.S. Naval Historical Center Photograph
# NH 98308

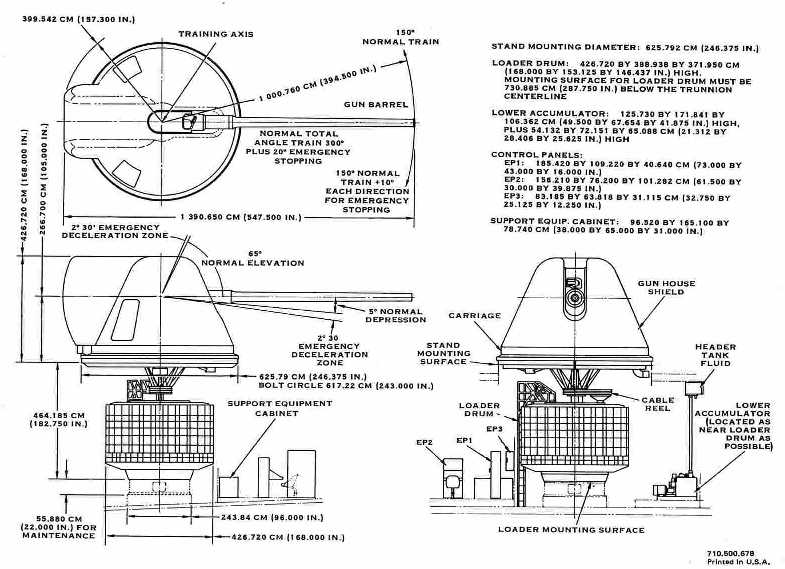

Mark 71 General Dimensions
Image courtesy of Leo Fischer

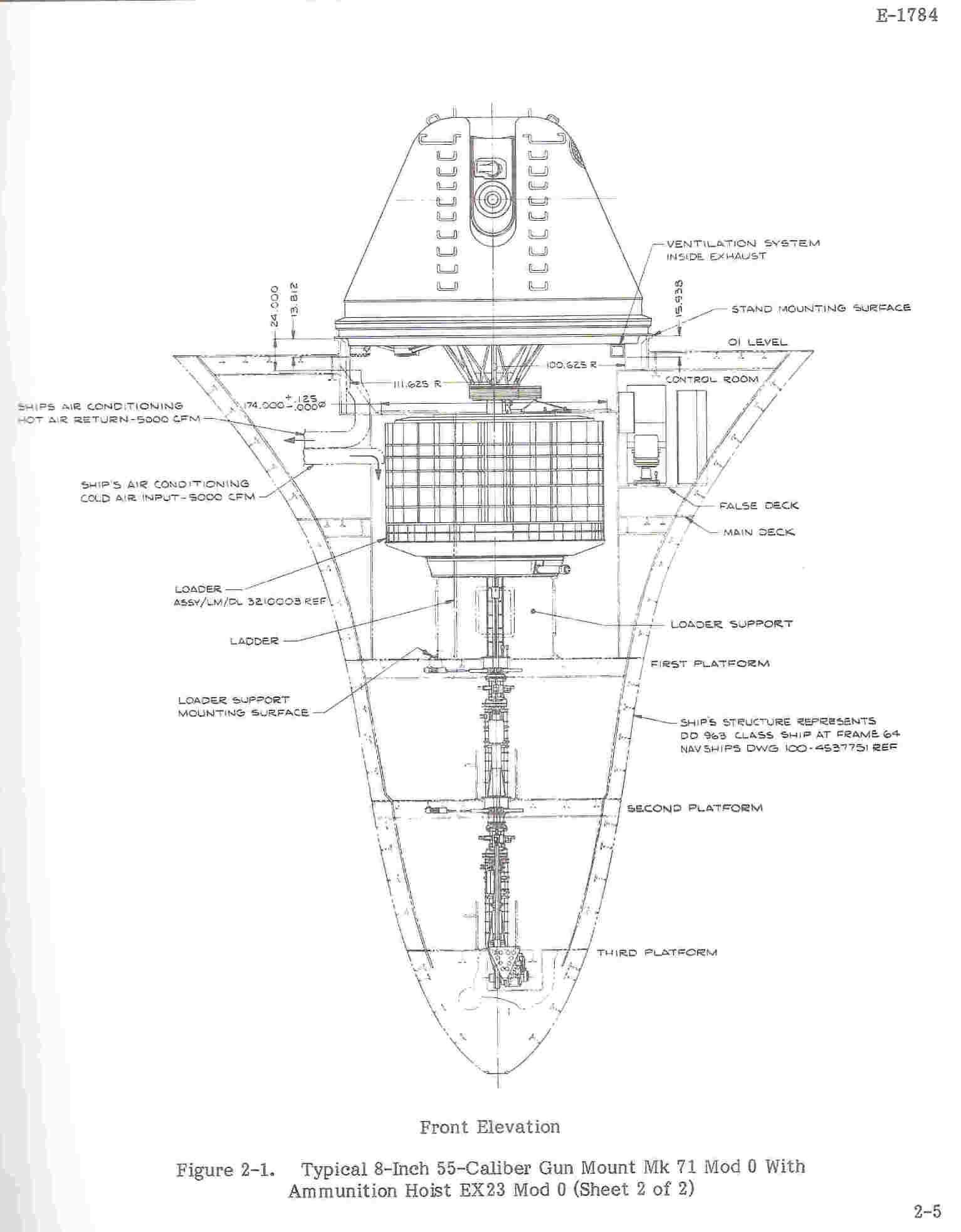

Sketch showing installation of Mark 71
on Spruance DD-963 class
Image courtesy of Leo Fischer
Click on this picture for a larger image

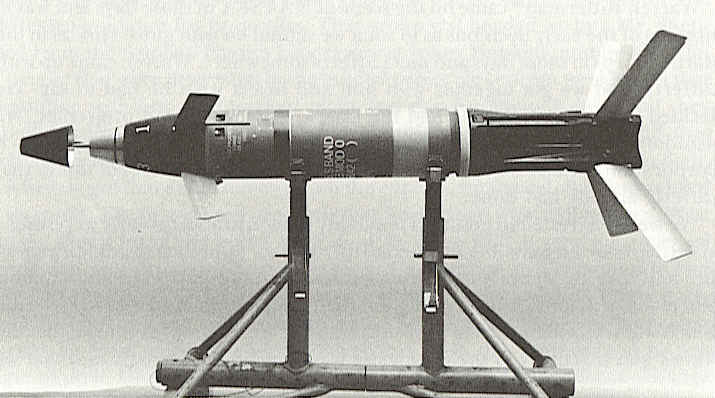

Laser-guided 8" (20.3 cm) Paveway or CLGP
developed in the 1970s at Dahlgren Laboratory, Virginia
USS Hull made 5 out of 5 hits on moored
ex-destroyer target USS Burns (DD-588) in June 1976 using these projectiles
Page History
18 January 2008 - Benchmark
05 March 2011 - Added installation sketch
for Spruance class
