本帖最后由 171758170 于 2011-8-18 18:27 编辑

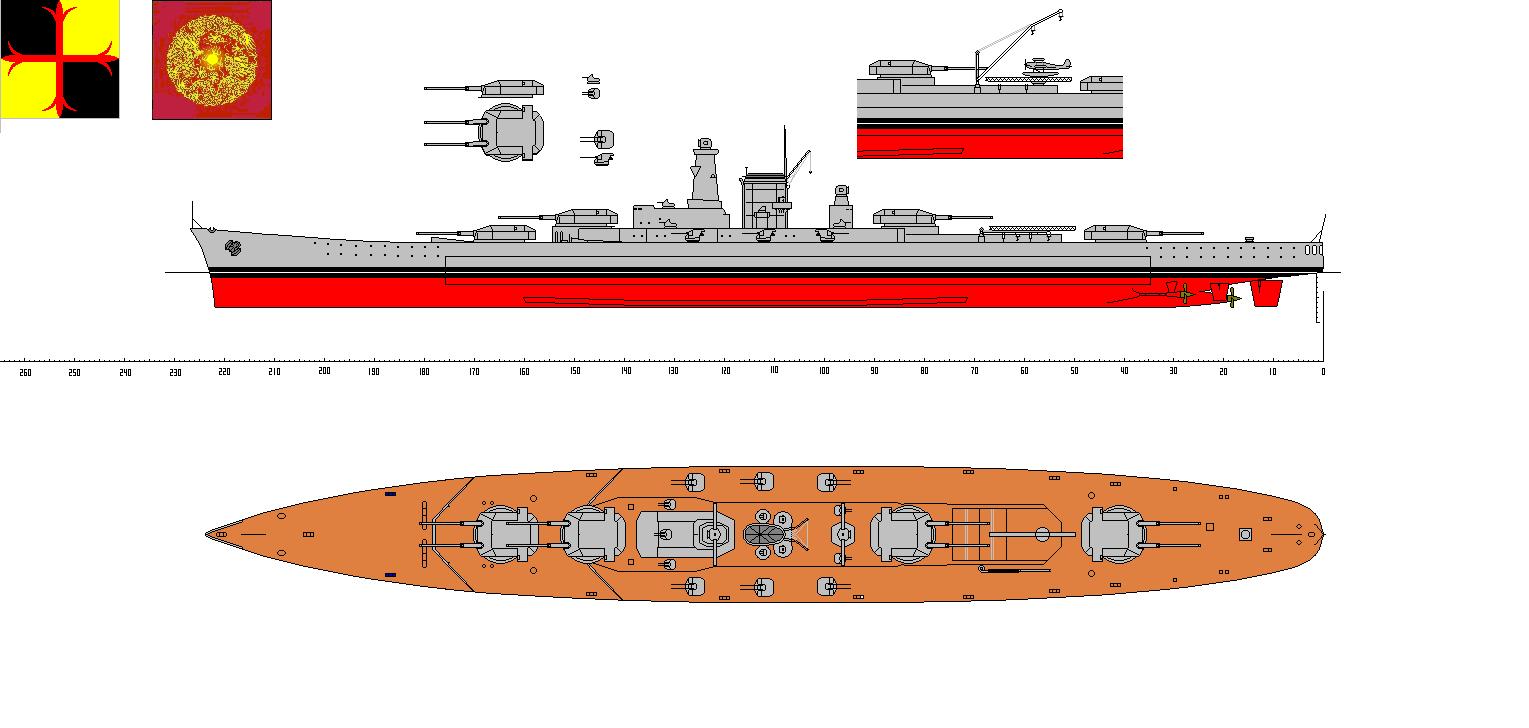

Enter ship name, Enter country Enter ship type laid down 1930Displacement: 19,398 t light; 20,705 t standard; 23,693 t normal; 26,083 t full loadDimensions: Length (overall / waterline) x beam x draught (normal/deep) (741.48 ft / 731.63 ft) x 88.58 ft x (25.59 / 27.48 ft) (226.00 m / 223.00 m) x 27.00 m x (7.80 / 8.38 m)Armament: 12 - 9.45" / 240 mm 55.0 cal guns - 455.29lbs / 206.51kg shells, 200 per gun Breech loading guns in turret on barbette mounts, 1930 Model 4 x Triple mounts on centreline ends, evenly spread 2 raised mounts - superfiring 12 - 5.04" / 128 mm 50.0 cal guns - 67.74lbs / 30.73kg shells, 500 per gun Dual purpose guns in deck mounts, 1930 Model 6 x 2-gun mounts on sides, evenly spread Weight of broadside 6,276 lbs / 2,847 kgArmour: - Belts: Width (max) Length (avg) Height (avg) Main: 5.91" / 150 mm 492.13 ft / 150.00 m 16.40 ft / 5.00 m Ends: 3.15" / 80 mm 180.45 ft / 55.00 m 16.40 ft / 5.00 m 59.06 ft / 18.00 m Unarmoured ends Upper: 3.15" / 80 mm 492.13 ft / 150.00 m 6.56 ft / 2.00 m Main Belt covers 103% of normal length Main Belt inclined -15.00 degrees (positive = in) - Torpedo Bulkhead - Strengthened structural bulkheads: 3.94" / 100 mm 524.93 ft / 160.00 m 27.89 ft / 8.50 m Beam between torpedo bulkheads 68.90 ft / 21.00 m - Gun armour: Face (max) Other gunhouse (avg) Barbette/hoist (max) Main: 9.84" / 250 mm 3.94" / 100 mm 7.09" / 180 mm 2nd: 1.97" / 50 mm 1.97" / 50 mm - - Protected deck - multiple decks: For and Aft decks: 3.94" / 100 mm - Conning towers: Forward 9.06" / 230 mm, Aft 0.00" / 0 mmMachinery: Oil fired boilers, steam turbines, Geared drive, 3 shafts, 120,000 shp / 89,520 Kw = 33.19 kts Range 9,000nm at 19.00 kts Bunker at max displacement = 5,379 tonsComplement: 954 - 1,241Cost: ￡6.814 million / $27.256 millionDistribution of weights at normal displacement: Armament: 1,655 tons, 7.0% - Guns: 1,655 tons, 7.0% Armour: 7,889 tons, 33.3% - Belts: 2,491 tons, 10.5% - Torpedo bulkhead: 2,132 tons, 9.0% - Armament: 1,012 tons, 4.3% - Armour Deck: 2,114 tons, 8.9% - Conning Tower: 140 tons, 0.6% Machinery: 3,636 tons, 15.3% Hull, fittings & equipment: 6,218 tons, 26.2% Fuel, ammunition & stores: 4,295 tons, 18.1% Miscellaneous weights: 0 tons, 0.0%Overall survivability and seakeeping ability: Survivability (Non-critical penetrating hits needed to sink ship): 32,436 lbs / 14,713 Kg = 76.9 x 9.4 " / 240 mm shells or 5.8 torpedoes Stability (Unstable if below 1.00): 1.11 Metacentric height 5.1 ft / 1.5 m Roll period: 16.6 seconds Steadiness - As gun platform (Average = 50 %): 81 % - Recoil effect (Restricted arc if above 1.00): 0.48 Seaboat quality (Average = 1.00): 1.08Hull form characteristics: Hull has a flush deck, a normal bow and small transom stern Block coefficient (normal/deep): 0.500 / 0.513 Length to Beam Ratio: 8.26 : 1 'Natural speed' for length: 29.28 kts Power going to wave formation at top speed: 53 % Trim (Max stability = 0, Max steadiness = 100): 75 Bow angle (Positive = bow angles forward): 20.00 degrees Stern overhang: 0.30 ft / 0.09 m Freeboard (% = length of deck as a percentage of waterline length): Fore end, Aft end - Forecastle: 20.00%, 26.25 ft / 8.00 m, 22.97 ft / 7.00 m - Forward deck: 30.00%, 22.97 ft / 7.00 m, 18.04 ft / 5.50 m - Aft deck: 35.00%, 18.04 ft / 5.50 m, 18.04 ft / 5.50 m - Quarter deck: 15.00%, 18.04 ft / 5.50 m, 18.04 ft / 5.50 m - Average freeboard: 20.03 ft / 6.11 m Ship tends to be wet forwardShip space, strength and comments: Space - Hull below water (magazines/engines, low = better): 77.7% - Above water (accommodation/working, high = better): 169.3% Waterplane Area: 44,215 Square feet or 4,108 Square metres Displacement factor (Displacement / loading): 110% Structure weight / hull surface area: 150 lbs/sq ft or 731 Kg/sq metre Hull strength (Relative): - Cross-sectional: 1.00 - Longitudinal: 1.08 - Overall: 1.00 Excellent machinery, storage, compartmentation space Excellent accommodation and workspace room Ship has slow, easy roll, a good, steady gun platform
换炮的方案
Enter ship name, Enter country Enter ship type laid down 1930Displacement: 19,600 t light; 20,948 t standard; 23,957 t normal; 26,365 t full loadDimensions: Length (overall / waterline) x beam x draught (normal/deep) (741.43 ft / 731.63 ft) x 88.58 ft x (25.72 / 27.62 ft) (225.99 m / 223.00 m) x 27.00 m x (7.84 / 8.42 m)Armament: 8 - 11.02" / 283 mm 54.5 cal guns - 727.53 lbs / 330.00 kg shells, 200 per gun Breech loading guns in turret on barbette mounts, 1930 Model 4 x Twin mounts on centreline ends, evenly spread 2 raised mounts - superfiring 12 - 5.04" / 128 mm 50.0 cal guns - 67.75lbs / 30.73kg shells, 500 per gun Dual purpose guns in deck mounts, 1930 Model 6 x 2-gun mounts on sides, evenly spread Weight of broadside 6,597 lbs / 2,992 kgArmour: - Belts: Width (max) Length (avg) Height (avg) Main: 5.91" / 150 mm 492.13 ft / 150.00 m 16.40 ft / 5.00 m Ends: 3.15" / 80 mm 180.45 ft / 55.00 m 16.40 ft / 5.00 m 59.06 ft / 18.00 m Unarmoured ends Upper: 3.15" / 80 mm 492.13 ft / 150.00 m 6.56 ft / 2.00 m Main Belt covers 103% of normal length Main Belt inclined -15.00 degrees (positive = in) - Torpedo Bulkhead - Strengthened structural bulkheads: 3.94" / 100 mm 524.93 ft / 160.00 m 27.89 ft / 8.50 m Beam between torpedo bulkheads 68.90 ft / 21.00 m - Gun armour: Face (max) Other gunhouse (avg) Barbette/hoist (max) Main: 9.84" / 250 mm 3.94" / 100 mm 7.09" / 180 mm 2nd: 1.97" / 50 mm 1.97" / 50 mm - - Protected deck - multiple decks: For and Aft decks: 3.94" / 100 mm - Conning towers: Forward 9.06" / 230 mm, Aft 0.00" / 0 mmMachinery: Oil fired boilers, steam turbines, Geared drive, 3 shafts, 120,000 shp / 89,520 Kw = 32.89 kts Range 9,000nm at 19.00 kts Bunker at max displacement = 5,417 tonsComplement: 962 - 1,251Cost: ￡6.969 million / $27.876 millionDistribution of weights at normal displacement: Armament: 1,454 tons, 6.1% - Guns: 1,454 tons, 6.1% Armour: 7,731 tons, 32.3% - Belts: 2,491 tons, 10.4% - Torpedo bulkhead: 2,007 tons, 8.4% - Armament: 971 tons, 4.1% - Armour Deck: 2,120 tons, 8.8% - Conning Tower: 141 tons, 0.6% Machinery: 3,636 tons, 15.2% Hull, fittings & equipment: 6,780 tons, 28.3% Fuel, ammunition & stores: 4,357 tons, 18.2% Miscellaneous weights: 0 tons, 0.0%Overall survivability and seakeeping ability: Survivability (Non-critical penetrating hits needed to sink ship): 32,404 lbs / 14,698 Kg = 48.9 x 11.0 " / 280 mm shells or 5.9 torpedoes Stability (Unstable if below 1.00): 1.11 Metacentric height 5.1 ft / 1.6 m Roll period: 16.9 seconds Steadiness - As gun platform (Average = 50 %): 80 % - Recoil effect (Restricted arc if above 1.00): 0.50 Seaboat quality (Average = 1.00): 1.07Hull form characteristics: Hull has a flush deck, a normal bow and small transom stern Block coefficient (normal/deep): 0.503 / 0.515 Length to Beam Ratio: 8.26 : 1 'Natural speed' for length: 29.27 kts Power going to wave formation at top speed: 53 % Trim (Max stability = 0, Max steadiness = 100): 75 Bow angle (Positive = bow angles forward): 20.00 degrees Stern overhang: 0.30 ft / 0.09 m Freeboard (% = length of deck as a percentage of waterline length): Fore end, Aft end - Forecastle: 20.00%, 26.12 ft / 7.96 m, 22.83 ft / 6.96 m - Forward deck: 30.00%, 22.83 ft / 6.96 m, 17.91 ft / 5.46 m - Aft deck: 35.00%, 17.91 ft / 5.46 m, 17.91 ft / 5.46 m - Quarter deck: 15.00%, 17.91 ft / 5.46 m, 17.91 ft / 5.46 m - Average freeboard: 19.90 ft / 6.07 m Ship tends to be wet forwardShip space, strength and comments: Space - Hull below water (magazines/engines, low = better): 78.2% - Above water (accommodation/working, high = better): 167.2% Waterplane Area: 44,338 Square feet or 4,119 Square metres Displacement factor (Displacement / loading): 110% Structure weight / hull surface area: 153 lbs/sq ft or 745 Kg/sq metre Hull strength (Relative): - Cross-sectional: 1.01 - Longitudinal: 1.09 - Overall: 1.02 Excellent machinery, storage, compartmentation space Excellent accommodation and workspace room Ship has slow, easy roll, a good, steady gun platform
|
|
发表于 2011-8-18 18:16
发表于 2011-8-18 18:23
楼主
发表于 2011-8-18 19:59
