一条架空前无畏

破砖烂瓦

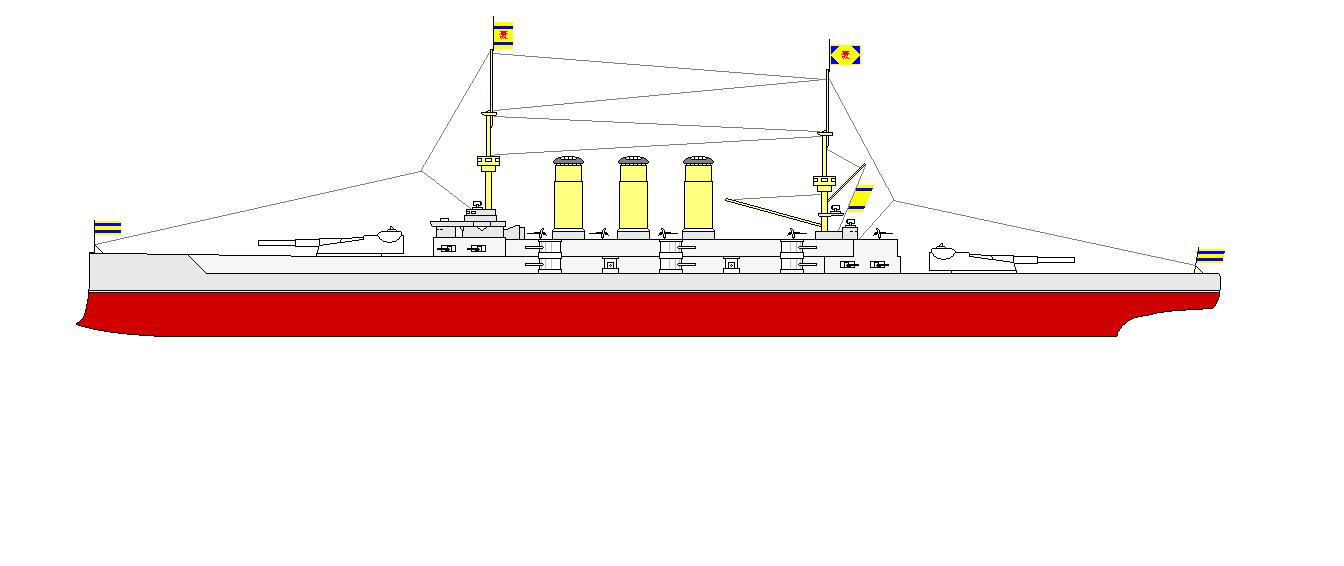

线图

维多利亚涂装（未完工）

SPS
Yang Wu, China PDN laid down 1898
Displacement:
14,923 t light; 15,762 t standard; 17,359 t normal; 18,636 t full load
Dimensions: Length (overall / waterline) x beam x draught (normal/deep)
(531.50 ft / 524.93 ft) x 75.46 ft x (27.89 / 29.50 ft)
(162.00 m / 160.00 m) x 23.00 m  x (8.50 / 8.99 m)
Armament:
      4 - 12.01" / 305 mm 45.0 cal guns - 873.08lbs / 396.02kg shells, 150 per gun
   Breech loading guns in turret on barbette mounts, 1898 Model
   2 x 2-gun mounts on centreline ends, evenly spread
      8 - 7.99" / 203 mm 45.0 cal guns - 257.42lbs / 116.76kg shells, 150 per gun
   Breech loading guns in casemate mounts, 1898 Model
   8 x Single mounts on sides amidships
  8 hull mounts in casemates- Limited use in heavy seas
      8 - 3.94" / 100.0 mm 45.0 cal guns - 30.77lbs / 13.96kg shells, 150 per gun
   Breech loading guns in casemate mounts, 1898 Model
   8 x Single mounts on sides amidships
  8 hull mounts in casemates- Limited use in heavy seas
      8 - 2.99" / 76.0 mm 45.0 cal guns - 13.51lbs / 6.13kg shells, 150 per gun
   Breech loading guns in deck mounts, 1898 Model
   8 x Single mounts on sides amidships
      Weight of broadside 5,906 lbs / 2,679 kg
Armour:
   - Belts:  Width (max) Length (avg)  Height (avg)
Main: 14.6" / 370 mm 393.70 ft / 120.00 m 14.11 ft / 4.30 m
Ends: 5.91" / 150 mm   65.62 ft / 20.00 m 14.11 ft / 4.30 m
   65.62 ft / 20.00 m Unarmoured ends
Upper: 5.91" / 150 mm   65.62 ft / 20.00 m 14.11 ft / 4.30 m
   Main Belt covers 115% of normal length
   - Torpedo Bulkhead:
  1.97" / 50 mm 393.70 ft / 120.00 m 27.89 ft / 8.50 m
   - Gun armour: Face (max) Other gunhouse (avg) Barbette/hoist (max)
Main: 12.2" / 310 mm 5.91" / 150 mm  11.8" / 300 mm
2nd: 5.91" / 150 mm       -         -
3rd: 3.94" / 100 mm       -         -
   - Protected deck - single deck: 1.97" / 50 mm For and Aft decks
   - Conning towers: Forward 11.81" / 300 mm,  Aft 0.00" / 0 mm
Machinery:
Coal fired boilers, complex reciprocating steam engines,
No drive to shaft, 2 shafts, 3,546 ihp / 2,645 Kw = 12.00 kts
Range 8,000nm at 12.00 kts
Bunker at max displacement = 2,873 tons (100% coal)
Complement:
755 - 982
Cost:
£1.042 million / $4.169 million
Distribution of weights at normal displacement:
Armament: 1,119 tons, 6.4%
Armour: 6,841 tons, 39.4%
    - Belts: 3,999 tons, 23.0%
    - Torpedo bulkhead: 800 tons, 4.6%
    - Armament: 1,046 tons, 6.0%
    - Armour Deck: 826 tons, 4.8%
    - Conning Tower: 171 tons, 1.0%
Machinery: 572 tons, 3.3%
Hull, fittings & equipment: 6,391 tons, 36.8%
Fuel, ammunition & stores: 2,436 tons, 14.0%
Miscellaneous weights: 0 tons, 0.0%
Overall survivability and seakeeping ability:
Survivability (Non-critical penetrating hits needed to sink ship):
   52,636 lbs / 23,875 Kg = 60.8 x 12.0 " / 305 mm shells or 12.4 torpedoes
Stability (Unstable if below 1.00): 1.15
Metacentric height 4.3 ft / 1.3 m
Roll period: 15.3 seconds
Steadiness - As gun platform (Average = 50 %): 100 %
   - Recoil effect (Restricted arc if above 1.00): 0.84
Seaboat quality  (Average = 1.00): 2.00
Hull form characteristics:
Hull has a flush deck,
   a ram bow and a cruiser stern
Block coefficient (normal/deep): 0.550 / 0.558
Length to Beam Ratio: 6.96 : 1
'Natural speed' for length: 22.91 kts
Power going to wave formation at top speed: 19 %
Trim (Max stability = 0, Max steadiness = 100): 50
Bow angle (Positive = bow angles forward): -5.00 degrees
Stern overhang: -1.64 ft / -0.50 m
Freeboard (% = length of deck as a percentage of waterline length):
    Fore end,  Aft end
    - Forecastle: 20.00%,  24.61 ft / 7.50 m,  22.97 ft / 7.00 m
    - Forward deck: 30.00%,  22.97 ft / 7.00 m,  22.97 ft / 7.00 m
    - Aft deck: 35.00%,  22.97 ft / 7.00 m,  22.97 ft / 7.00 m
    - Quarter deck: 15.00%,  22.97 ft / 7.00 m,  22.97 ft / 7.00 m
    - Average freeboard:  23.10 ft / 7.04 m
Ship tends to be wet forward
Ship space, strength and comments:
Space - Hull below water (magazines/engines, low = better): 49.3%
  - Above water (accommodation/working, high = better): 160.2%
Waterplane Area: 27,644 Square feet or 2,568 Square metres
Displacement factor (Displacement / loading): 143%
Structure weight / hull surface area: 159 lbs/sq ft or 775 Kg/sq metre
Hull strength (Relative):
  - Cross-sectional: 1.08
  - Longitudinal: 2.88
  - Overall: 1.19
Hull space for machinery, storage, compartmentation is excellent
Room for accommodation and workspaces is excellent
Ship has slow, easy roll, a good, steady gun platform
Excellent seaboat, comfortable, can fire her guns in the heaviest weather

风之旋律

破砖烂瓦 发表于 2010-12-8 14:07
线图

维多利亚涂装（未完工）

= =
双层炮廓~下层炮廓距离水线也太近了~建议船中部加一层甲板，把副炮提高一层~就好多了。

破砖烂瓦

距离水线2.5米以上，许多战列舰和装巡的炮廓也就这个高度。

小胡子

来对付你的舰:lol

风之旋律

破砖烂瓦 发表于 2010-12-8 14:16
距离水线2.5米以上，许多战列舰和装巡的炮廓也就这个高度。

= =！果然~瓦姐还是喜欢平甲板~貌似没看见速射炮~难道还没舾装完？

破砖烂瓦

靠近中间炮廓内的就是100毫米反水雷速射炮，甲板上的76毫米舢板炮还没有安装。

风之旋律

破砖烂瓦 发表于 2010-12-8 14:25
靠近中间炮廓内的就是100毫米反水雷速射炮，甲板上的76毫米舢板炮还没有安装。 ...

前后的是152MM炮？这么看的话，副炮可是有点少啊~两年后完工的太子号和列特维赞号都是每侧6门6寸炮的~

破砖烂瓦

前后炮廓中的二级主炮是203MM。

风之旋律

破砖烂瓦 发表于 2010-12-8 14:30
前后炮廓中的二级主炮是203MM。

= =!203MM的炮~好恐怖~不过记得1898年8寸炮达不到速射的要求把~难道是为了几年后8寸炮能速射的情况下迅速换成速射8寸炮？

破砖烂瓦

美国人PDN上8寸炮这个时候能够做到1.5-2分钟一发。

风之旋律

破砖烂瓦 发表于 2010-12-8 14:38
美国人PDN上8寸炮这个时候能够做到1.5-2分钟一发。

引进米国技术了？那应该没问题了~不过在船中部的甲板上每侧放一个8寸双联炮塔的话，火力应该更猛烈。

破砖烂瓦

不知道我是炮廓控么？

小胡子

风之旋律 发表于 2010-12-8 14:32
= =!203MM的炮~好恐怖~不过记得1898年8寸炮达不到速射的要求把~难道是为了几年后8寸炮能速射的情况下迅速 ...

对，可以先把炮座冗余度设计在那儿，先装制退时间慢的旧款炮，等新技术应用到炮架后再换新炮;P

风之旋律

破砖烂瓦 发表于 2010-12-8 14:45
不知道我是炮廓控么？

国父孙中山先生有云：博爱~

破砖烂瓦

小胡子 发表于 2010-12-8 14:45
对，可以先把炮座冗余度设计在那儿，先装制退时间慢的旧款炮，等新技术应用到炮架后再换新炮
...

其实不用先装旧炮，因为1898年开工的话，到下水的时候8寸炮用弹性炮架已经出现了。
