Germany
3.7 cm/L83 (1.5") SK C/30
3.7 cm/L83 (1.5") SK C/30U
Updated 09 August 2009
This AA weapon was used on every major combatant ship of World War II.  It was only capable of semi-automatic firing, with each shell being individually loaded, which made it a rather slow-firing weapon for anti-aircraft defense.  For this reason, it was replaced on many ships in the latter part of the war with the 3.7 cm KM42 and 3.7 cm KM43.

In addition to the normal train and elevation axes, the mounting for this weapon had a third axis which stabilized the the gun carriage when the ship rolled or pitched.  This allowed the gun to track an airplane without interference from the motion of the ship.  However, problems with this mounting led to its abandonment in subsequent designs for 3.7 cm guns.

The 3.7 cm/L83 SK C/30U was designed for use on U-boats and was used on a "wet-mount."

Some quantity of these weapons were exported to Spain.

Used a vertically sliding breech block.

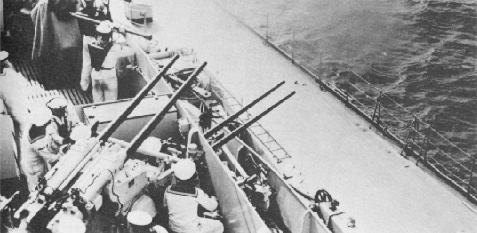

3.7 cm/83 SK C/30 guns on Bismarck

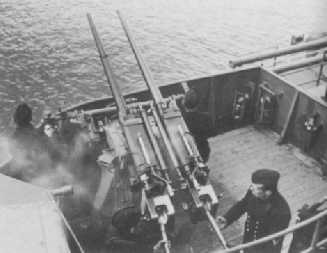

3.7 cm/83 SK C/30 practice shoot aboard Heavy Cruiser Prinz Eugen
Note the hand loading of individual rounds

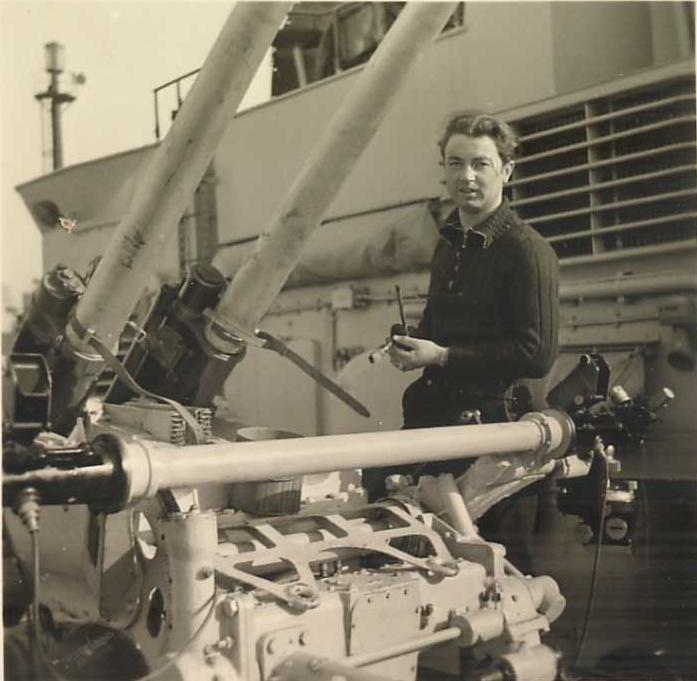

3.7 cm/83 SK C/30 on unidentified Destroyer

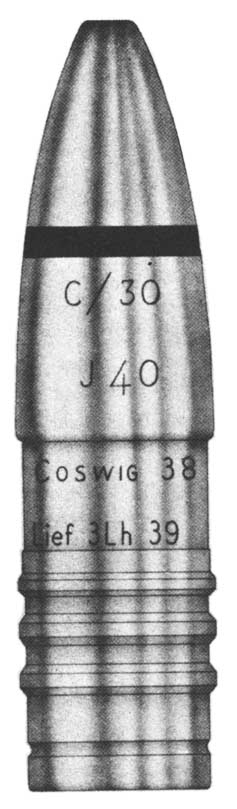

Spr.gr. HE-T Projectile
"Coswig" is a manufacturing town in Germany
.
Gun Characteristics
.
Designation 3.7 cm/L83 (1.5") SK C/30
Ship Class Used On Almost all
Date Of Design 1930
Date In Service 1934
Gun Weight 536 lbs. (243 kg)
Barrel Length 121.0 in (3.074 m)
Bore Length 116.5 in (2.960 m)
Rifling Length 100.6 in (2.554 m)
Grooves (16) 0.0217 in deep x 0.187 in (0.55 mm x 4.76 mm)
Lands 0.098 in (2.5 mm)
Twist Increasing RH 1 in 50 to 1 in 35
Chamber Volume 30.5 in3 (0.500 dm3)
Rate Of Fire
(see Note)		 about 30 rounds per minute
Note:  Many references show a ROF of 80 rounds per gun per minute (theoretical) and 40 rounds per gun per minute (practical).  I believe the above figure, taken from "Naval Weapons of World War Two" to be more accurate.
.
Ammunition
.
Type Fixed
Complete Round Weight HE-T:  4.63 lbs. (2.1 kg)
Projectile Types and Weights HE-T:  1.64 lbs. (0.742 kg)
Bursting Charge HE-T:  0.8 lbs. (0.365 kg)
Projectile Length 6.4 in (162 mm)
Propellant Charge
(see Note 2)		 0.81 lbs. (0.365 kg) RPC/38N
Cartridge - 2 lbs. (0.97 kg)
Muzzle Velocity 3,281 fps (1,000 mps)
Working Pressure 18.7 tons/in2 (2,950 kg/cm2)
Approximate Barrel Life 7,500 rounds
Ammunition stowage per gun Bismarck:  2,000 rounds
Scharnhorst:  2,000 rounds (later upped to 6,000 rounds)
Deutschland:  2,000 rounds (later upped to 6,000 rounds)
Admiral Hipper and Prinz Eugen - single:  7,000 rounds
Admiral Hipper and Prinz Eugen - twin:  1,500 rounds
Königsberg, Liepzig and Nürnberg:  1,200 rounds
Z1 - Z47:  2,000 rounds
Notes:

1) Complete round was 20.3 in (516.5 mm) long.

2) As originally introduced, these weapons used RPC/32 propellant.

3) Tracer burnt for 12 seconds.

4) HE-T was a Spr.gr.
.
Range
.
Elevation With 1.63 lbs. (0.742 kg) HE Shell
Range @ 45 degrees 9,300 yards (8,500 m)
AA Ceiling @ 85 degrees 22,310 feet (6,800 m) - tracer 15,750 feet (4,800 m)
.
Mount / Turret Data
.
Designation Twin Mounting
Graf Zepplin (11), Bismarck (8), Admiral Hipper (6), Prinz Eugen (6), Königsberg (4), Liepzig (4), Nürnberg (4), Destroyers (2) and Torpedo Boats (1):  Dopp LC/30

Single Mounting
   S-Boats (1):  Ein LC/34

U-Boat Single
   Most U-Boats (1):  Ubts LC/39
Weight  Dopp LC/30:  8,090 lb (3,670 kg)
Ein LC/34:  About 4,400 lbs. (2,000 kg)
Ubts LC/39:  3,200 lbs. (1,450 kg)
Elevation Dopp LC/30:  -10 / +85 degrees
Ein LC/34:  -10 / +80 degrees
Ubts LC/39:  -10 / +90 degrees
Elevation Rate N/A
Train 360 degrees
Train Rate N/A
Gun recoil N/A
Notes:

1) The Dopp LC/30 mounting was manually trained and elevated with direct gyro cross leveling over +/- 19.5 degrees.

2) Twin mounts had a crew of six on-mount plus ammunition passers.

3) Twin mounts were used by most warships Torpedo Boat size and larger while the single mounts were used mainly by S-boats and small auxiliary warships.
.
Data from
"Naval Weapons of World War Two" by John Campbell
"German Warships 1815-1945" by Erich Gröner
"German Destroyers of World War Two (2nd Edition)" and "German Cruisers of World War Two" both by M.J. Whitley
"Warship Pictorial #21:  Kriegsmarine Prinz Eugen" by Steve Wiper
Page History

22 May 2008 - Benchmark
23 March 2009 - Fixed typographical error, added links to other 3.7 cm AA guns.
09 August 2009 - Added picture of Spr.gr. projectile
