12"/52 (30.5 cm) Pattern 1907
305 mm/52 (12") Pattern 1907
Updated 10 January 2010

These were the most powerful guns ever used on a completed Russian or Soviet warship.  They were built to a Russian design and many were also used as coastal artillery and railway guns.

The design of the gun began in 1906 at the Obukhov factory and a prototype was completed in 1907.  The Navy initially ordered twenty guns from Obukhov at the end of 1907, with 178 more being ordered in the following years.  126 of these were delivered prior to 1917 (some sources say 144 guns).  In 1917-18 an additional 42 guns were delivered, but after that point the Russian Civil War halted production until 1921 when 14 more guns were finished.  In 1922 there were 29 guns at the factory at different stages of completion, some of which were subsequently finished.  In 1939-40 some guns were converted into a loose liner type.

The battleship turret was designed by the Metal Factory in 1909 and was based on the modernized mountings for the 12"/40 (30.5 cm) gun used on the Andrey Pervozvanny class battleships.

The battleships armed with these guns were known for their excellent shooting during World War I.  During her engagement with the German/Turkish battlecruiser Goeben/Yavuz on 8 January 1916, Imperatritsa Maria, firing into the sun at a range of about 20,000 meters, landed her first three salvos at 500, 100 and 50 meters short of the Turkish ship.  As this distance was outside of her range, Yavuz was forced to run for home, pursued by the Russian dreadnought.  Yavuz's commander, Captain Richard Ackermann, later reported that "Imperatritsa Maria can run and shoot."  On 4 April 1916, Imperatritsa Maria's sister-ship Ekaterina II straddled and then knocked the stem off the German/Turkish light cruiser Breslau/Midilli at about 21,000 meters.

The guns on the battleship Imperator Alexandr III served under several flags.  Imperator Alexandr III was taken over by the Soviets and renamed Volya ("Freedom") on 29 April 1917.  In May 1918 she was captured by the Germans at Sevastopol and commissioned in the German Navy on 15 October 1918.  After the German surrender, the ship was taken over by the British who subsequently moved her to Izmir, Turkey.  On 17th October 1919, she came under White Russian control and renamed General Alekseyev.  With the defeat of the White Russians, she was interned by the French at Bizerta, Tunis.  After the Soviets refused the French offer to return her to their control in 1924, she was subsequently scrapped at Bizerta during the 1930s and her guns then used in coastal batteries to defend that port.

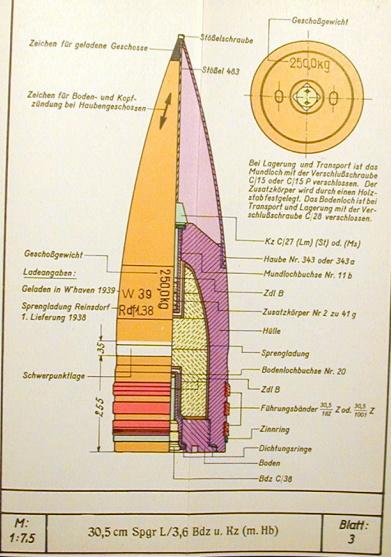

In the early part of World War II, France decided to transfer the 12 guns to Finland and Norway and three cargo ships were dispatched from Tunis to those nations.  The two ships bound for Finland arrived safely and their eight guns were used for coastal batteries and railroad guns.  But the Norwegian steamship Nina with her cargo of four guns was captured by the Germans in 1940 during the fighting in Norway.  The Germans moved these guns back south and installed them as part of their Atlantic Wall defenses at Le Frie Baton, Guernsey Island, where they were known as Battery Nina (later renamed Battery Mirus after Kapitän zur See Rolf Mirus, killed in November 1941 near Guernsey Island).  This battery was active between late 1942 and 1945 and survived the war, with the guns being scrapped sometime later.  These guns appeared to have been modified to use standard German 30.5 cm (12") projectiles and propellants.  One of the sources below reports that these guns were derated after reliability problems with these projectiles, but this may be a confusion between the much longer range for the "lightweight" Spr.gr. L/3,6 Bdz u. Kz (mhb) of about 56,000 yards (51 km) when compared to that for the "normal weight" Psgr. L/4,9 (mhb) of about 43,000 yards (39 km).

In addition to the Naval version of the gun, there was also a Coast Defense version which differed in having a larger chamber volume and used different ammunition, although it could also fire the naval rounds.  By 1927 all of the coast defense guns had been changed over to using only naval ammunition.  These were mainly mounted in twin coastal defense turrets that were designed in 1913.  A total of 14 of these coastal defense turrets were built.  Single open mountings were also produced for the coastal defense fortresses.  There were four four-gun batteries around the Baltic, two four-gun batteries around the Black Sea and two five-gun batteries in the Far East.  After the battleship Poltava was damaged by fire in 1924, her turrets were removed and then installed as coast defense batteries, two near Vladivostok in the 1930s and two near Sevastopol in the 1950s.  Both batteries were in active service until 1996 and the turrets still survive.

Nomenclature note:  This weapon is usually referred to as "Model 1910-1914" in western sources.

Constructed of A tube, two B tubes to the muzzle, two C tubes, two D tubes and jacket.  The breech bush screwed into the jacket, locking the parts together, and a collar was shrunk on the breech bush and the end of the collar covered by a small ring with a shoulder.  Both collar and ring were placed in position when hot.  A Welin breech block was used.

The actual bore diameter was 304.8 mm (12.0").

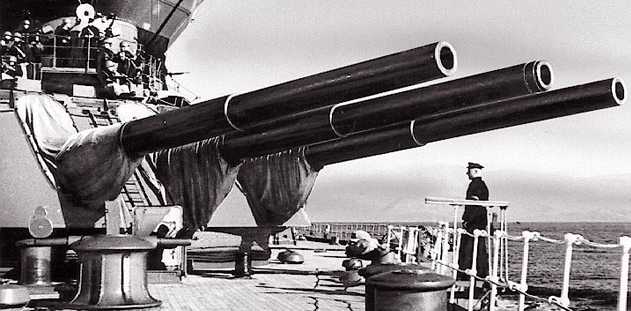

12"/52 (30.5 cm) Turret on an unidentified Russian Battleship

.
Click here for additional pictures
.
.
Gun Characteristics
.
Designation 12"/52 (30.5 cm) Pattern 1907
305 mm/52 (12") Pattern 1907
Ship Class Used On Gangut, Imperatritsa Maria and Imperator Nikolai I classes
Coast defense mountings and TM-1-12 railroad guns
Date Of Design 1907
Date In Service 1910
Gun Weight 49.9 tons (50.7 mt)
Gun Length oa 624 in (15.850 m)
Bore Length 607.1 in (14.420 m)
Rifling Length 508.4 in (12.912 m)
Grooves (72) 0.079 in deep x 0.354 in (2.0 mm x 9.0 mm)
Lands 0.169 in (4.3 mm)
Twist Uniform RH 1 in 30
Chamber Volume
(see Note)
13,710 in3 (224.6 dm3)
Rate Of Fire Gangut: 1.8 rounds per minute
Imperatritsa Maria:  3 rounds per minute
Sevastopol after modernization in 1940: 2.2 rounds per minute

Twin coast defense turrets (1914):  1.5 rounds per minute
Twin coast defense turrets (1941):  2 rounds per minute
MB-3-12FM Coast defense turret:  2.25 rounds per minute
Open Coast Defense Mount:  2 rounds per minute

Note:  Guns captured by the Germans during World War II were modified to take German projectiles and charges.  These modified guns had a chamber volume of 13,669 in3 (224.0 dm3)
.
Ammunition
.
Type Bag
Projectile Types and Weights APC mod 1911 - 1,038 lbs. (470.9 kg)
SAP mod 1911 - 1,038 lbs. (470.9 kg)
HE mod 1911 - 1,038 lbs. (470.9 kg)
Shrapnel mod 1915 - 731.3 lbs. (331.7 kg)
Chemical mod 1916 - N/A [probably 1,038 lbs. (470.9 kg)]
HE mod 1928 - 692 lbs. (314 kg)
Distance Grenade (DG-022) - 1,038 lbs. (470.9 kg)
Coast Defense AP - 984.14 lbs. (446.4 kg)
Coast Defense HE - 984.14 lbs. (446.4 kg)
Super Heavy Round - 1,281.8 lbs. (581.4 kg)

German HE L/4,8 nose fuze - 892.9 lbs. (405 kg)

Bursting Charge APC mod 1911 - 28.57 lbs. (12.96 kg)
SAP mod 1911 - 135.58 lbs. (61.5 kg)
HE mod 1911 - 135.58 lbs. (61.5 kg)
HE mod 1911 (Made in Japan) - 101.19 lbs. (45.9 kg)
HE mod 1911 (Made in USA) - 91.05 lbs. (41.3 kg)
Shrapnel mod 1915 - 6.77 lbs. (3.07 kg)
Distance Grenade (DG-022) - 105.6 lbs. (47.9 kg)
HE mod 1928 - 121.7 lbs. (55.2 kg)
Coast Defense HE - 67.68 lbs. (30.7 kg)

German HE L/4,8 nose fuze - 58.4 lbs. (26.5 kg)

Projectile Length APC mod 1911 - 3.9 calibers
SAP mod 1911 - 5 calibers
HE mod 1911 - 5 calibers
HE mod 1911 (Japan) - 4.5 calibers
HE mod 1911 (USA) - 4.4 calibers
Shrapnel mod 1915 - 3.1 calibers
Distance Grenade (DG-022) - 4.7 calibers
HE mod 1928 - 5 calibers
Coast Defense HE - 4.15 calibers

HE L/4,8 nose fuze - 4.8 calibers

Propellant Charge (From "Naval Weapons") - 346 lbs. (157 kg) NCT, 0.197 in wall (5 mm)
(From "Encyclopedia") - 291 lbs. (132 kg) (propellant type not known)
German propellants - N/A
Muzzle Velocity AP, SAP and HE mod 1911 - 2,500 fps (762 mps)
HE mod 1928 - 3,117 fps (950 mps)
Coast Defense rounds - 2,800 fps (853 mps)
Shrapnel mod 1915 - 2,660 fps (810.8 mps)
Super Heavy Round - 2,260 - 2,300 fps (690 - 700 mps)
Working Pressure 17.1 tons/in2 (2,700 kg/cm2)
Approximate Barrel Life 400
Ammunition stowage per gun 100 rounds
Notes:

1) The Chemical round was rebuilt from APC and training rounds.

2) Propellant was in halves.

3) Naval shells are believed to have been 4crh.

4) The super-heavy round was not accepted into production due to the low muzzle velocity which gave disappointing range and penetration performance.

.
Range
.
Elevation With all 1,038 lbs. (470.9 kg) mod 1911 Rounds
Range @ 20 degrees
(From "Encyclopedia")
22,600 yards (20,670 m)
Range @ 25 degrees
(From "Encyclopedia")
25,400 yards (23,230 m)
Range @ 25 degrees
(From "Naval Weapons")
26,925 yards (24,620 m)
Range @ 40 degrees
(Coastal artillery)
31,400 yards (28,710 m)
Range @ 48 degrees
(Coastal artillery)
32,080 yards (29,340 m)
Elevation With 692 lbs. (314 kg) Long Range HE mod 1928
Range @ 25 degrees 37,200 yards (34,020 m)
Range @ 40 degrees
(Coastal artillery)
48,200 yards (44,080 m)
Range @ 50 degrees
(Coastal artillery)
50,285 yards (45,980 m)
Elevation With 985 lbs. (446.6 kg) HE mod 1911
Range @ 25 degrees
(Coastal artillery)
26,800 yards (24,510 m)
.
Elevation
1,038 lbs. (470.9 kg) mod 1911
MV of 2,500 fps (762 mps)
Striking Velocity
Angle of Fall
1.02 degrees
2,190 yards (2,000 m)
2,320 fps (707 mps)
1.07
2.15 degrees
4,370 yards (4,000 m)
2,142 fps (653 mps)
2.38
3.41 degrees
6,560 yards (6,000 m)
1,975 fps (602 mps)
3.99
4.83 degrees
8,750 yards (8,000 m)
1,814 fps (553 mps)
5.98
6.43 degrees
10,940 yards (10,000 m)
1,667 fps (508 mps)
8.42
8.25 degrees
13,120 yards (12,000 m)
1,529 fps (466 mps)
11.43
10.33 degrees
15,310 yards (14,000 m)
1,411 fps (430 mps)
15.08
12.72 degrees
17,500 yards (16,000 m)
1,306 fps (398 mps)
19.44
15.46 degrees
19,690 yards (18,000 m)
1,227 fps (374 mps)
24.52
18.63 degrees
21,870 yards (20,000 m)
1,178 fps (359 mps)
30.18
22.29 degrees
24,060 yards (22,000 m)
1,155 fps (352 mps)
36.20
25.00 degrees
25,480 yards (23,300 m)
1,155 fps (352 mps)
40.21
.

Armor Penetration With 1,038 lbs. (470.9 kg) APC mod 1911 Shell
.
Range
Side Armor
Deck Armor
10,000 yards (9,140 m)
13.85 in (352 mm)
0.67 in (17 mm)
20,000 yards (18,290 m)
8.15 in (207 mm)
2.36 in (60 mm)
30,000 yards (27,430 m)
5.00 in (127 mm)
5.50 in (140 mm)
Notes:

1) Above data from "Main Caliber of the Battleships."

2) Between the end of 1918 and the beginning of 1919 the British tested the Russian projectiles against 8" (20.3 cm) Cemented (face-hardened) armor at 20 degrees to the normal, this being the condition used to test the British 12" (30.5 cm) Mark VIIa (Greenboy) projectiles.  The projectile holed the plate but broke up at 1,447 fps (441 mps) and penetrated intact at 1,615 fps (493 mps).

3) 'British post-Jutland tests of Russian 12" M1909 APC [M1911 APC - TD] shells gave excellent results at 20 degrees obliquity, much better than the new Greenboy British 12" Mk VII APC shell did and seemingly on a par with the larger British 13.5" APC shells.' - Nathan Okun.

.
Mount / Turret Data
.
Designation Three-gun turrets (later designated MK-3-12)
   Gangut (4), Imperatritsa Maria (4) and Imperator Nikolai I (4)

Coast Defense Mountings
   Twin Coast Defense Turrets (later designated MB-2-12)
   Triple Coast Defense Turrets MB-3-12
   Modified Triple Coast Defense Turrets MB-3-12FM
   Open Single Mounts
   Krupp Mounts for the Nina Battery

Weight MK-3-12:  767.8 tons (780 mt)
MK-3-12 (modified) on Sevastopol:  771.7 tons (784 mt)
Imperatritsa Maria class:  858.3 tons (872 mt)

MB-2-12:  757.9 tons (770 mt)
MB-3-12FM:  815.1 tons (828.1 mt)

Elevation MK-3-12:  -5 / +25 degrees
MK-3-12 (modified):  -5 / +40 degrees
Imperatritsa Maria class:  -5 / +25 degrees
Rate of Elevation MK-3-12:  3-4 degrees per second
MK-3-12 (modified):  6 degrees per second
Imperatritsa Maria class:  3-4 degrees per second

Twin coast defense turret:  3 degrees per second
MB-2-12:  5 degrees per second
MB-3-12FM:  6 degrees per second
Open Single Mounts:  0.67 degrees per second

Train MK-3-12:  310 - 360 degrees
MK-3-12 (modified):  310 - 360 degrees
Imperatritsa Maria class:  310-360 degrees

MB-2-12:  360 degrees
MB-3-12FM:  -185 / +185 degrees

Rate of Train MK-3-12:  3.2 degrees per second
MK-3-12 (modified):  3.2 degrees per second
Imperatritsa Maria class:  3.2 degrees per second

Twin coast defense turret:  3 degrees per second
MB-2-12:  5.3 degrees per second
Open Single Mounts:  0.67 degrees per second

Gun Recoil 50 in (1.27 m)
Loading Angle MK-3-12:  -5 to +15 degrees
MK-3-12 (modified):  +6 degrees
Triple turrets on Imperatritsa Maria class:  -5 to +15 degrees

MB-2-12:  0 to +15 degrees
MB-3-12FM:  +6 degrees

Notes:

1) Guns in triple turrets were individually sleeved.  The battleship mountings are unusual in that they were all on the centerline at the same deck level.

2) Mountings at Sevastopol were modified in 1940 to increase elevation.

3) Training and elevation were electrically powered with hydraulic drive gear.

4) "Naval Weapons of World War Two" says that the Russian battleship mountings were designed by Coventry Ordnance Works (UK).

.
Data from
"Naval Weapons of World War Two" by John Campbell
"Mirus - The making of a Battery" by Colin Partridge and John Wallbridge
"Sovetskie Boevye Korabli 1941-45:  IV Vooruzhnie" (Soviet Warships 1941-45:  Volume IV Armament) by A.V. Platonov
"Glavnyi Calibr Linkorov" (Main Caliber of the Battleships) by L.I. Amirkhanov and S.I. Titushkin
"Entsiklopedia Otechestvennoi Artillerii" (Encyclopedia of Fatherland (Russian) Artillery) by A.V. Shirokorad
"The Ship that Changed the World:  The Escape of the Goeben to the Dardanelles in 1914" by Dan Van Der Vat
"Poslednie Ispoliny Rossiyskogo Imperatorskogo Flota" (Last Giants of the Russian Imperial Navy) by S.E. Vinogradov
---
"Flot vo Slavu Rossii" (Fleet in Honor of Russia) CD
---
Fortress Island (pdf file)
---
Special help from Vladimir Yakubov and Neil Stirling
Off-site Resources

For further information on these weapons, see the Kilta Website.  This website includes a good many pictures of Kuivasaaren Fort, located near Helsinki in Finland.  The 305 mm/52 (12") twin coastal defense mounting at this fort has been restored to a near-operational status and has fired water blanks several times since 1992.
---
More pictures on this and other coastal defense weapons in Finland and Russia may be found at Northern Fortress Website.
