Russia / USSR 130 mm/70 (5.1") AK-130

Russia / USSR
130 mm/70 (5.1") AK-130
Updated 14 November 2013

The AK-130 is one of the most powerful gun systems used in the world today and is a fully automatic, dual-purpose weapon. Design work was started by the PO Arsenal in 1967 on a single gun version designated as A-217. However, the required rate of fire of 60 rounds per minute was not reached during trials, so it was decided to switch to a twin mounting. The new system with a factory designation ZIF-94 used the same barrel and large number of components from the A-217.

The mountings are controlled by MP-184 Fire Control Radar Systems, which include a 2-band radar, low light TV, laser designator, system for selecting moving targets and an ESM system. This system has a range of 75 km (41 nm). The system provides the integration of all of the shipboard radars, exact measurement of all parameters of movement for all air, sea and land targets, exact bearing to the target, correction of shooting by splashes and automatic tracking of shells.

The mounts are triaxially stabilized and the barrels are liquid cooled.

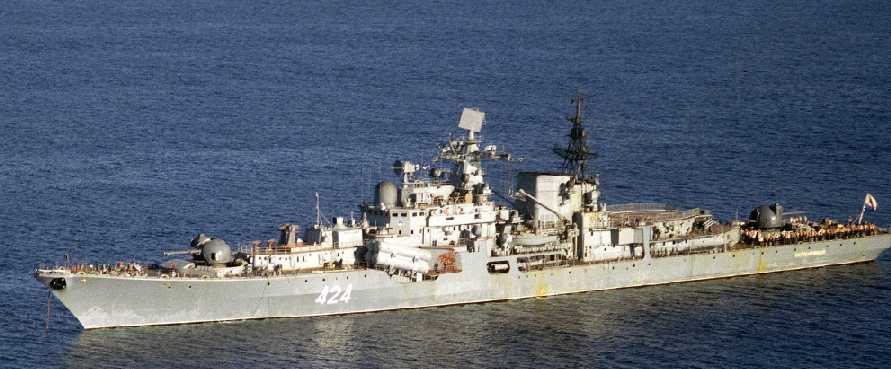

Sovremenny class guided missile destroyer Okrylenny in December 1989
U.S. Navy Photograph No. DN-SC-90-03789

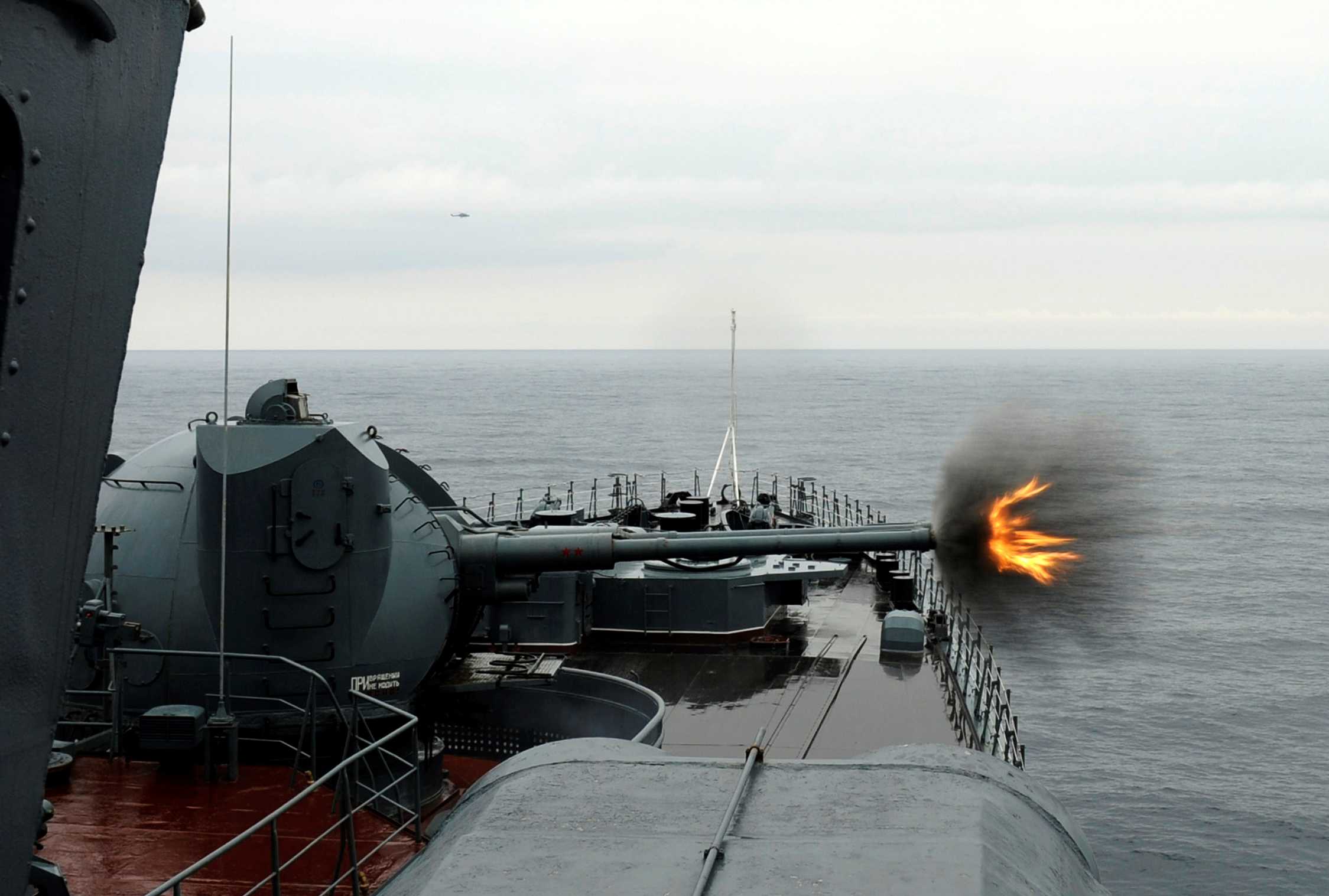

130 mm/70 (5.1") firing aboard RFS Admiral Chabanenko (DD 650) in June 2011
U.S. Navy Photograph No. 110629-N-ME988-29
Click on this picture for a larger image

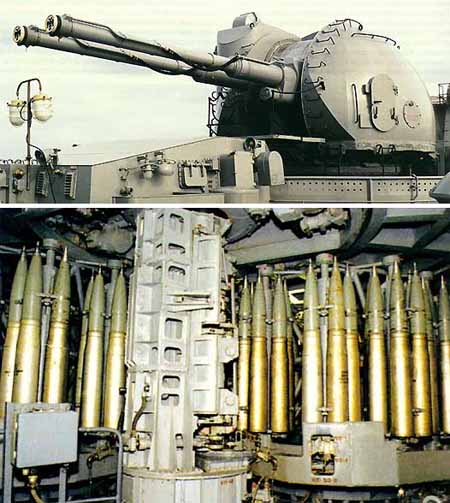

130 mm/70 (5.1") AK-130 on Marshall Ustinov
Pictures courtesy of Naval Technology

Gun Characteristics .

Designation	130 mm/70 (5.1") AK-130
Ship Class Used On	Sovremenny, Slava and Kirov Classes
Date Of Design	1980
Date In Service	1985
Gun Weight	N/A
Gun Length oa	358.3 in (9.100 m)
Bore Length	N/A
Rifling Length	276.38 in (7.020 m)
Grooves	N/A
Lands	N/A
Twist	N/A
Chamber Volume	N/A
Rate Of Fire	10 - 40 rounds per minute per gun

Ammunition .

Type	Fixed
Weight of Complete Round	190 lbs. (86.2 kg)
Projectile Types and Weights	HE (F-44) - 73.6 lbs. (33.4 kg) AA (ZS-44) - 73.6 lbs. (33.4 kg) AA (ZS-44P) - 73.6 lbs. (33.4 kg)
Bursting Charge	HE (F-44) - 7.85 lbs. (3.56 kg) AA (ZS-44) - 7.85 lbs. (3.56 kg) AA (ZS-44P) - 7.85 lbs. (3.56 kg)
Projectile Length	N/A
Propellant Charge	N/A Cartridge - 116.4 lbs. (52.8 kg) Cartridge Length - 53.9 in (1.369 m)
Muzzle Velocity	2,788 fps (850 mps)
Working Pressure	N/A
Approximate Barrel Life	about 1,500 rounds
Ammunition stowage per gun	Sovremenny: 500 rounds Others: N/A 150 to 180 ready rounds on mount

Range .

Elevation	With 73.6 lbs. (33.4 kg) HE Shell
Max Ballistic Range	25,150 yards (23,000 m)
Max Range Against Missiles	up to 8,750 yards (8,000 m)
Max Range Against Aircraft	up to 16,400 yards (15,000 m)

Mount / Turret Data .

Designation	Single Mount B-13 Twin Mounts B-28 B-2LMT B-2LM
Weight	Single Mount: about 89 tons (90 mt) Twin Mount: about 100 tons (102 mt)
Elevation	-12 / +80 degrees
Rate of Elevation	25 degrees per second
Train	+ 200 / - 200 degrees
Rate of Train	25 degrees per second
Gun Recoil	20.47 - 24.57 in (520 - 624 mm)
Note: Lead ship Kirov (later Admiral Ushakov) had two single 100 mm guns in place of the single twin 130 mm gun used on later members of the class.

Data from
"The Naval Institute Guide to World Naval Weapon Systems 1991/92" by Norman Friedman
"Entsiklopedia Otechestvennoi Artillerii" (Encyclopedia of Fatherland [Russian] Artillery) by A.V. Shirokorad
---
Naval Technology
---
Special help from Vladimir Yakubov and Leo Fischer
