30.5 cm/50 (12") VSM Mark H
Updated 18 February 2012
A Vickers design which, according to "The Big Gun," was quite different from other VSM or EOC weapons of this caliber.  However, no details are given as to what were the differences.  From an examination of photographs, it would appear that at least one of the differences was in the design of the breech mechanism.  At least 24 guns were purchased between 1912 and 1920.

When España was wrecked after running aground in August 1923, her guns were removed and then used in coastal batteries.  When Jaimie I was scrapped in 1939, her guns were also then used in coastal batteries.  As of 2006, some of these still survive.

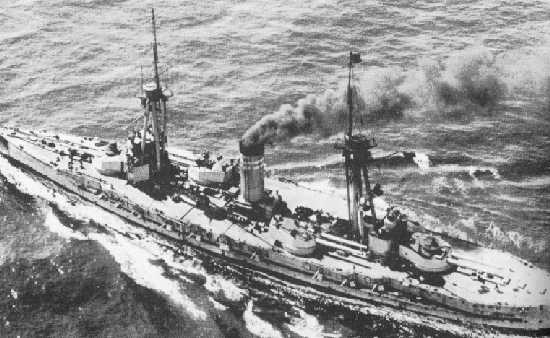

Jaimie I
BfZ Photograph
.
Click here for additional pictures
.
.
Gun Characteristics
.
Designation 30.5 cm/50 (12") VSM Mark H
Ship Class Used On España Class
Date Of Design about 1910
Date In Service 1913
Gun Weight 65 tons (66 mt)
Gun Length oa 616.5 in (15.658 m)
Bore Length 569.3 in (14.461 m)
Rifling Length N/A
Grooves 72
Lands N/A
Twist RH, details not available
Chamber Volume N/A
Rate Of Fire about 1.5 rounds per minute
Note:  The Rate of Fire figure given above is found in references for British guns of this caliber, but "Warrior to Dreadnought:  Warship Development 1860-1905" quotes Jellicoe's 1906 figures for rates of fire for these guns in gunlayers' tests and in battle practice and notes that the latter figures corresponded well to those actually attained by the Japanese at Tsushima:

Gunlayers Test:  2 rounds per minute
Battle Practice:  1 round per minute
.
Ammunition
.
Type Bag
Projectile Types and Weights APC Mark VI (2crh) - 850 lbs. (386 kg)
CPC Mark VIIa - 850 lbs. (386 kg)
HE Mark IIa - 850 lbs. (386 kg)

HE Aerodynamic - 867.7 lbs. (393.6 kg)
Bursting Charge APC Mark VI - 25.7 lbs. (11.7 kg)
CPC Mark VIIa - 80 lbs. (36.3 kg)
HE Mark IIa - 106.5 lbs. (48.3 kg)

HE Aerodynamic - 81.3 lbs. (36.9 kg)
Projectile Length APC Mark VI - 39.7 in (100.8 cm)
CPC Mark VIIa - 48.4 in (122.9 cm)
HE Mark IIa - 48.3 in (122.7 cm)

HE Aerodynamic - N/A
Propellant Charge 287 lbs. (130 kg)
Muzzle Velocity 2,933 fps (894 mps)
Working Pressure N/A
Approximate Barrel Life N/A
Ammunition stowage per gun N/A
Note:  The projectile weights and types given above are mainly those for British 12" (30.5 cm) shells of the early World War I period.  I am assuming that the same or similar shells would have been provided to Spain, but that no late-war projectiles such as the "Greenboys" would have been supplied.  HE Aerodynamic is of Spanish design and used only by Coastal Batteries.
.
Range
.
Elevation With 850 lbs. (405 kg) AP Shell
Range @ 15 degrees about 20,000 yards (18,300 m)
.
Mount / Turret Data
.
Designation Two-gun Turrets
   España (4)
Weight N/A
Elevation Naval Twin Turrets:  -5 / +15 degrees
Coastal Twin Turrets:  -3 / +20 degrees
Coastal Single Turrets:  -5 / +55 degrees
Elevation Rate N/A
Train About +150 / -150 degrees
Train Rate N/A
Gun recoil N/A
Loading Angle N/A
.
Data from
"Battleships of the World:  1905-1970" by Siegfried Breyer
"Warrior to Dreadnought:  Warship Development 1860-1905" by D.K. Brown
"The Big Gun:  Battleship Main Armament 1860-1945" by Peter Hodges
"Battleships of World War I" by Peter Hore
"A Concentrated Effort:  Royal Navy Gunnery Exercises at the End of the Great War" article by William Schleihauf in "Warship International" No. 2, 1998
---
ADM 186/169
---
Special help by Neil Stirling, Javier Villarroya del Real and Caspar Vermeulen
